Description

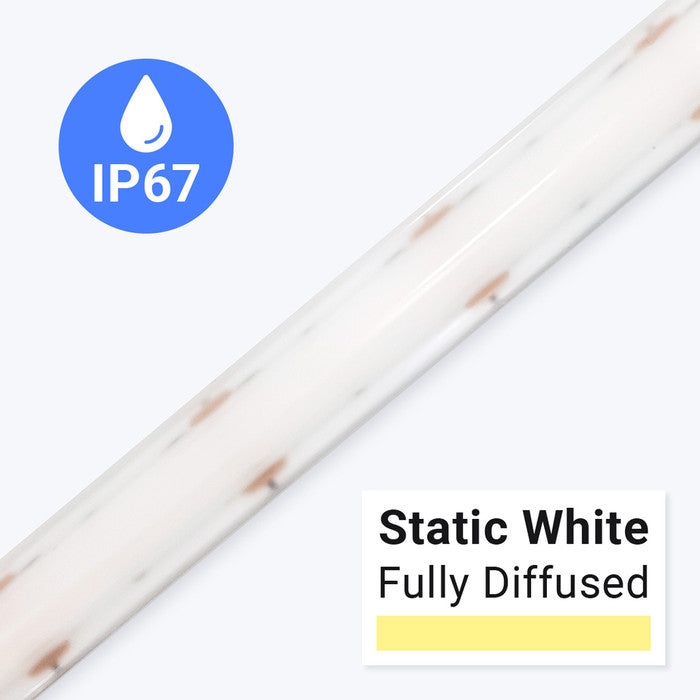

Valor™ Series Diffused LED Strip Light - IP67 Rated
Introduction:

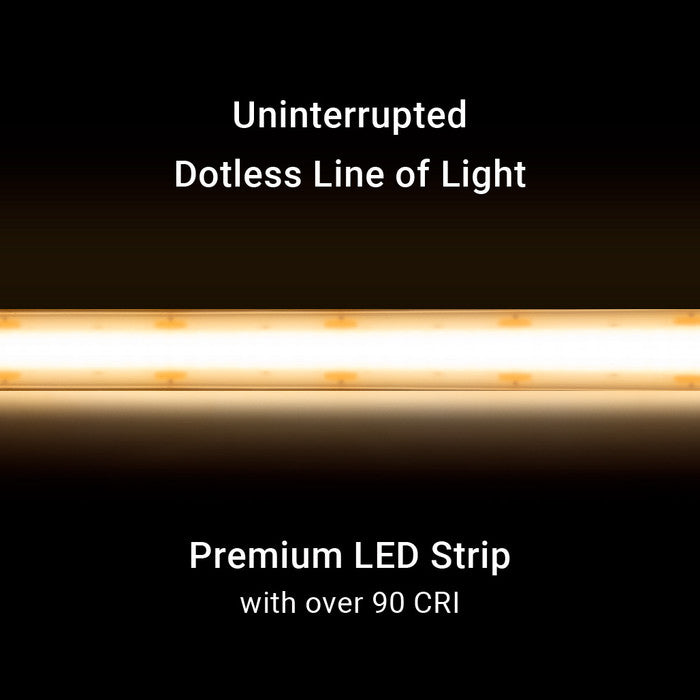

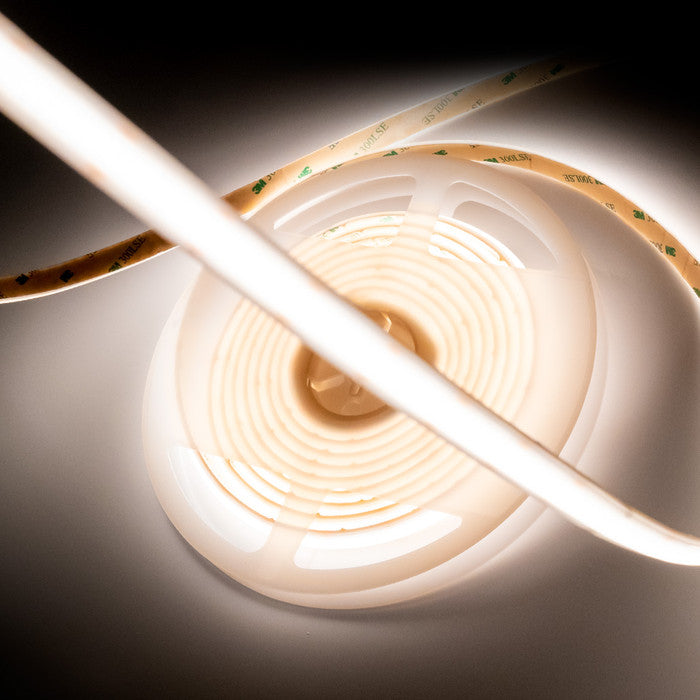

The Valor™ Series LED Strip Light provides an uninterrupted dotless line of light. This means that you will not see the individual dots of individual LEDs when the strip is in direct view or when reflected off of shiny surfaces.
The Valor™ Series was engineered to be fully diffused, brighter, more reliable for long-term outdoor installation, and lasts much longer with better thermal performance than other "COB LED strip lights" available in the market. Its high chip density and specialized silicon diffusion sleeve creates beautiful seamless line of light. Unlike the competitor's COB-style strips, this light is very bright, boasting 805 lumens per foot with a CRI over 90!
With a watertight IP67 protection rating, it is also the preferred outdoor-use high-brightness strip light. It's fully dimmable and can be controlled with PWM controllers, AC dimmers, and DMX controllers.
Each light strip includes extra connectors, mounting brackets, screws, open end caps, and closed end caps.
This strip light can be easily installed using its own connectors and our Outdoor Grip Connectors, thus allowing this strip to be used on different types of projects. As with all of our high-output LED strip lights, we recommend using a heat sink, such as our Ion™ Mounting Channel.
Top Features and Benefits:
-
✔ High CRI up to 94 and TLCI up to 95
-

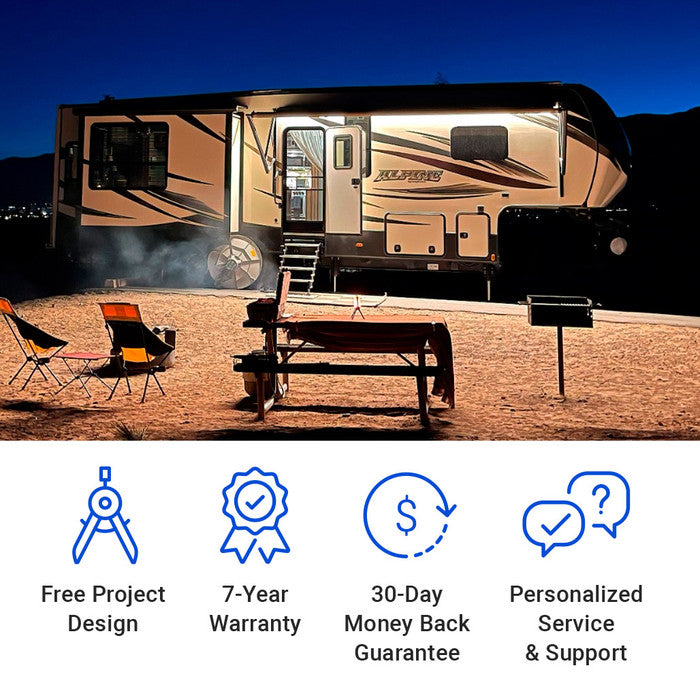

✔ Outdoor IP67 rated
-

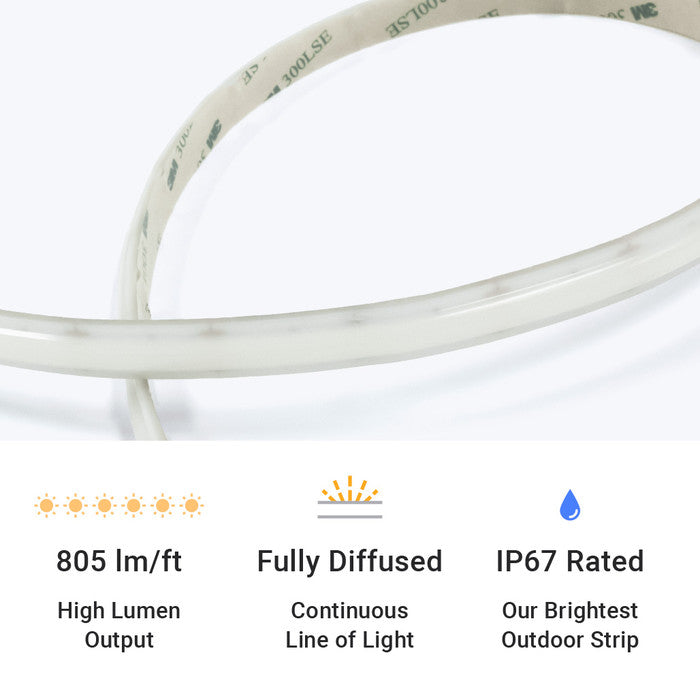

✔ High lumen output up to 805 lm/ft
-
✔ Maximum run length of 16' 5" (5 m)
-
✔ Very high chip density: 93 LED chips per ft
-
✔ Efficiency of up to 119 lm/W
-
✔ Fully Dimmable
-
✔ 120 beam angle
-
✔ 24V DC input
-
✔ 50,000 hour lifespan (8 hours/day for 17 years)
-
✔ 7-year warranty
-
✔ UL Listed (cULus) E362522
Available Colors (CCTs):
Applications:
These strips are installed in a wide variety of high brightness applications including:
-
• When lights are in direct view or reflected from surfaces
-
• Hallway lighting
-
• Outdoor cove lighting
-
• Outdoor corridor lighting
-

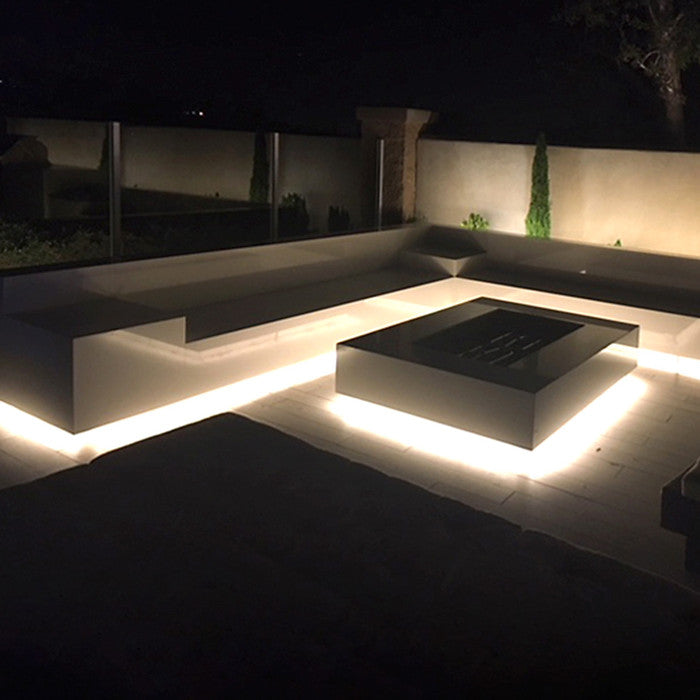

• Patio lighting
-
• Bathroom lighting
-
• Stair lighting
-
• Signage lighting
-
• Showcase lighting
-

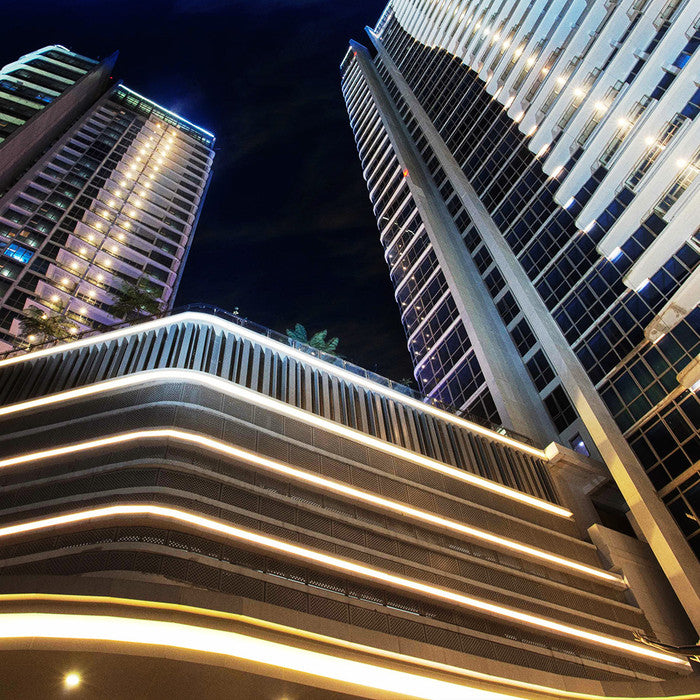

• Architectural Lighting
Why Choose Valor™ Series Diffused LED Strip Light?
This product is ideal for applications where you need very bright, fully-diffused lighting, or high-output lighting in outdoor settings.
In direct view you will see a solid line of light with a dotless appearance. This strip can be used in hundreds of locations, but really shines with commercial projects, hallways, outdoor coves, outdoor corridors, among other architectural projects. Its high output also makes it perfect for signage lighting and showcase projects. Diffused LED lighting looks more complete and finished than staring directly at spaced out LED chips.
These lights are very flexible and can be mounted onto different surfaces using its 3M adhesive and mounting brackets. Keep in mind that a metal heat sink is highly recommended due to the high output of the strip, but it is still very versatile in its application. Additionally, these lights are IP67 rated so they can be used outdoors.
Our Valor™ Series diffused LED Strip Lights are safe and made with top-of-the-line components and are UL Listed, RoHS, and CE compliant.
Specifications:
-
✔ 7.3 Watts/ft
-
✔ 2835 LED chips
-
✔ Maximum run length up to 16 ft (5 meters)
-
✔ 50,000-hour lifespan (8 hours/day for 17 years)
-
✔ 1/2" (12 mm) strip width
-
✔ Fully dimmable
-
✔ 120° beam angle
-
✔ 24V DC Input
-
✔ Available CCTs: 3000K and 5000K
-

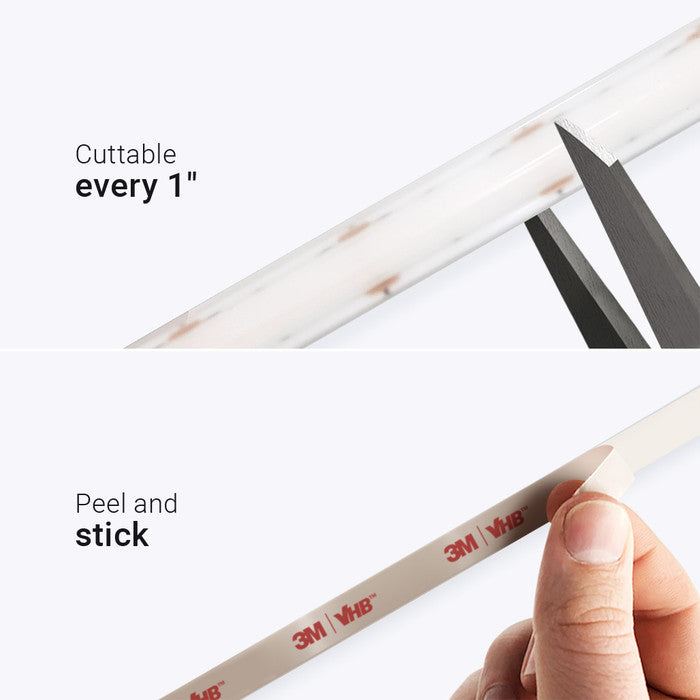

✔ Cuttable every 1" (26 mm)
-
✔ IP67 Rated
-
✔ 7 year warranty
-
✔ Thermally resistant 3M GL 9495
-
✔ Operating Temperature: -4°F to 113°F (-20°C to 45°C)
-
✔ UL listed cULus (E362522)
| Product SKU | Color CCT | Lumens / Foot | Lumens / Watt | CRI | Gamut Score | Relative Fidelity |
| IP67-UB-VA-30K | 3000K | 750 | 110 | 94 | 99 | 92 |
| IP67-UB-VA-50K | 5000K | 805 | 119 | 94 | 98 | 90 |
