Description

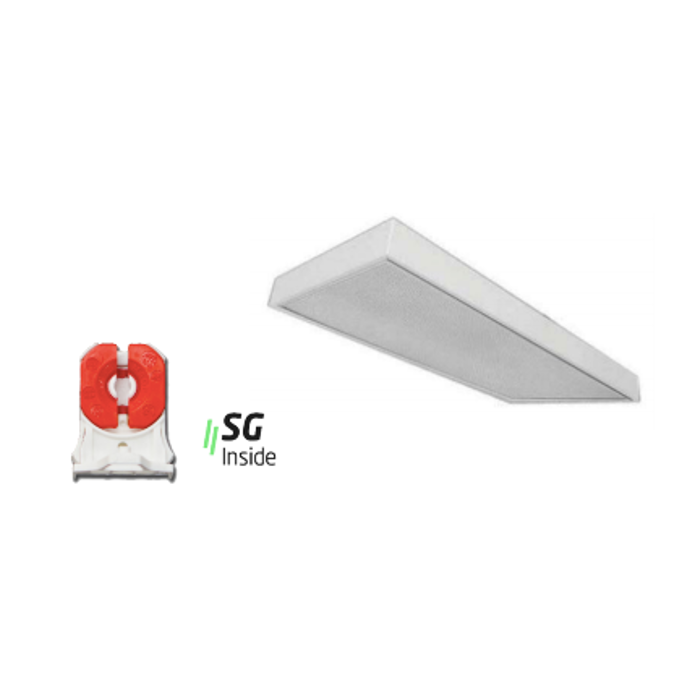

Specification grade, low profile surface mount fixture provides for an almost limitless range of applications in areas where surface modulars (no grid) are required. The Surface Mounted Troffer fixtures utilize efficient LED T8 lamps that provide high lumen output with efficient energy savings. Since they don’t require any ballast or driver the only component that will ever need changing is the LED T8 lamp. The lamps are warranted for five years. Unlike Surface Mounted Troffer fixtures that utilize LED arrays and drivers these fixtures have the flexibility to change wattage, lumens, and color temperature simply by changing the lamps without the need to call a licensed electrician.
CONSTRUCTION Housing is die-formed and embossed code 22 gauge steel. Finish is high reflectance baked white enamel. WIring knockouts are provided on back of housing. Ballast cover or reflector snaps into place; no tools required for ballast access. Lens is held with a hinged steel door frame; frame hinges downward on either side and is held closed by two positive cam latches. Premium, full specular reflectors are available as an option to increase efficiency or modify lighting distribution.
MOUNTING Direct surface mount
SIZE W x L x H in inches
2x2: 23.75W x 24.0L x 3.75H
Fixture body is Made in the USA.
