Outdoor (IP65) UltraBright™ Architectural Series LED Strip Light

Save $126.30
SKU: IP65-UB-AS-27K90C-12V-16FT
filler

CHOOSE COLOR TEMPERATURE: 2700K - WARMER WHITE
CHOOSE YOUR SELECT VOLTAGE INPUT: 12V DC
CHOOSE YOUR LENGTH: 16 FT 5 IN (5 METERS)
Price:
Sale price$323.70 Regular price$450.00

Description

Outdoor architectural series LED strip lights

Outdoor (IP65) UltraBright™ Architectural Series LED Strip Light

Introduction:

Our Outdoor UltraBright™ Architectural Series is built to last and to make lasting impressions. Born to meet the high standard of innovative architectural design and complex lighting projects, the Architectural Series features an incredible output up to 502 lm/ft, excellent color rendering up to 98, low energy usage at 4.4 W/ft, and longer run lengths up to 65ft. Pair this strip with a dimmer to take full advantage of its versatile applications, from bright task lighting to lower, comfortable accents. Developed with our network of architects and designed to meet their specific needs, we’ve created a series of exceptional LED lights by balancing functionality, aesthetics, and versatility.

Top Features and Benefits:

high brightness LED strip light 502 lm per foot      4.4 Watts per foot LED Strip Light    architectural LED Strip light maximum run legth of 42 ft     Architectural Series White Output LED Strip Light with high CRI up to 98

  • ✔ Silicone Sleeve IP65 rated

  • ✔ High CRI up to 98 and TLCI up to 97

  • ✔ High efficiency of 4.4 Watts/ft

  • ✔ High output up to 502 lm/ft (1,646 lm/m)

  • ✔ Available in 12V and 24V input

  • ✔ Fully dimmable

  • ✔ Can be used to comply with Title 24 JA8

  •  50,000 hour lifespan (8 hours/day for 17 years)

  • ✔ 15-year warranty

  •  UL Listed (cULus) E362522

Applications and Use:

These strips are installed in a wide variety of applications including:

  •  Linear lighting

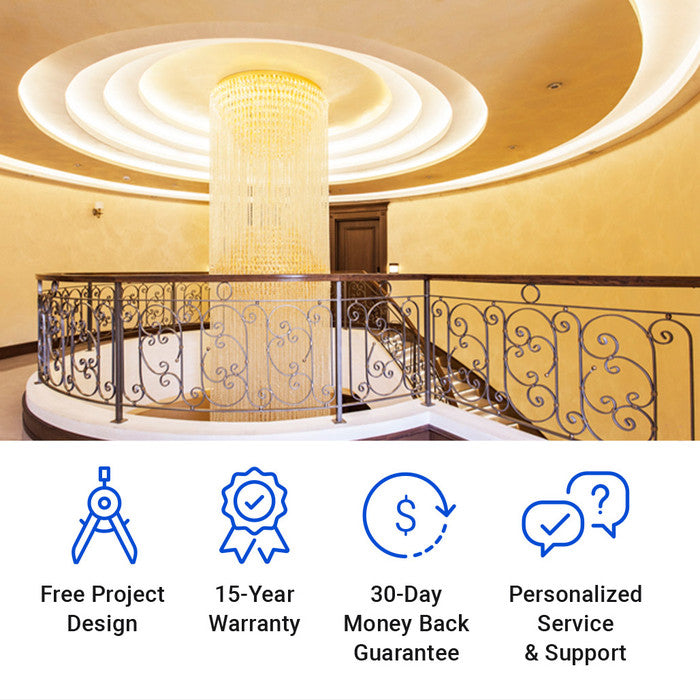

  •  Cove lighting

  •  Backlighting

  •  Edge lighting

  •  Cabinets and shelving

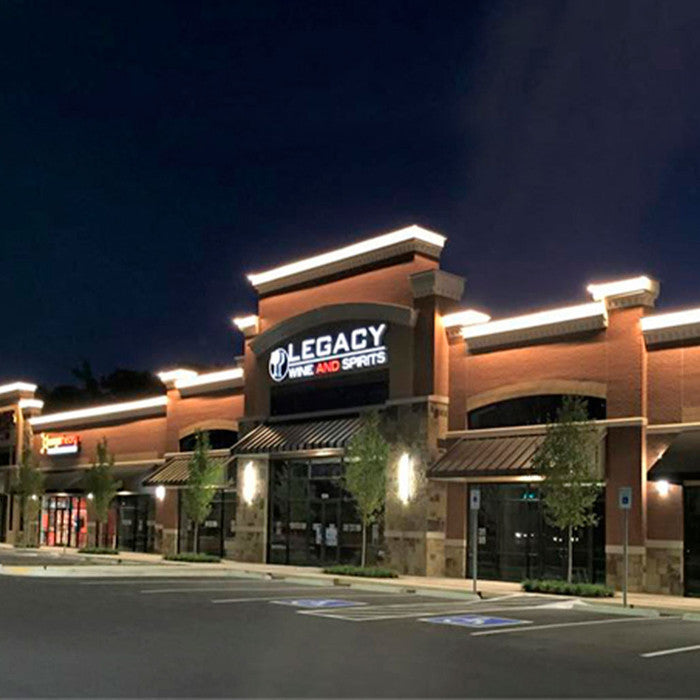

  •  Signage lighting

  • • Under cabinet task lighting

  •  Display lighting

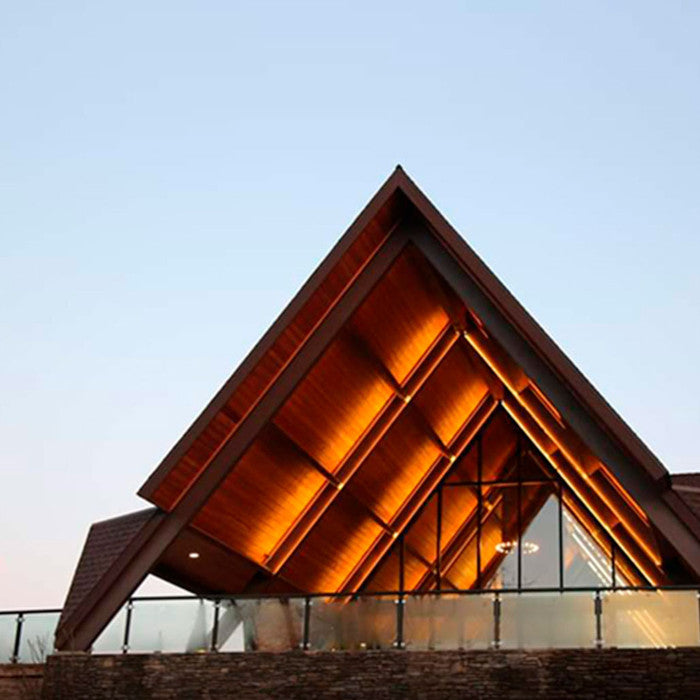

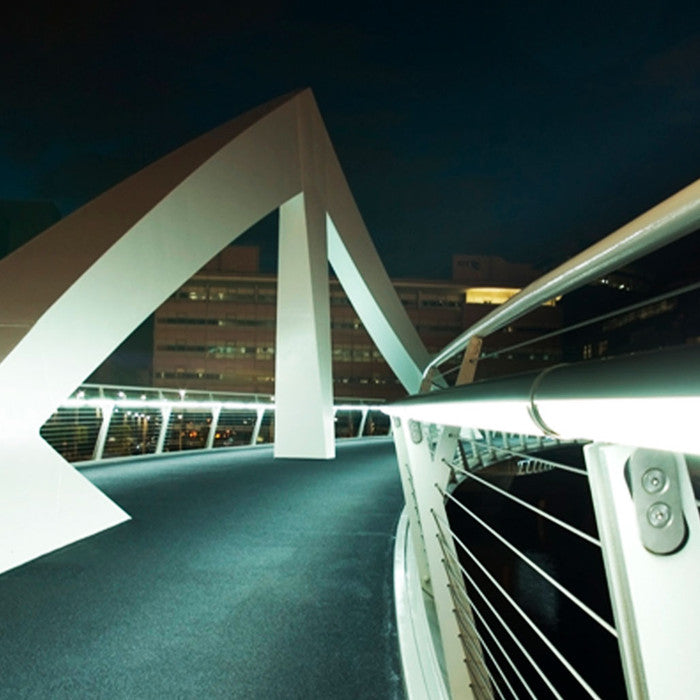

  • • Architectural Lighting

  • • Terratium and greenhouse lighting

Brightness Level

Check out our White Output LED Strips Page to compare the output levels of our Static White Strips.

At 502 lumens per foot, this high-output strip is perfect for task lighting.

high brightness architectural LED strip lights

Available Colors (CCTs):



Warm white color temperature LED strip lightcool white color temperature led strip lights

Why choose Architectural™ Series?

The UltraBright™ Architectural Series is the industry choice to meet the high demands of architectural design and innovative lighting projects. The Architectural Series boasts brilliant brightness, excellent color rendering, and discreet elegance for any size project. Experience every color exactly how they should appear for years to come, while keeping your energy usage low with these durable, efficient lights. Our unparalleled understanding of the LED market lets us solve common commercial issues and push the boundaries of rapidly-growing technology.

architectural-series-led-strip-light-long-lasting-warranty-lighting.jpgarchitectural-series-led-strip-light-short-led-pitch-uniform-lighting.jpgarchitectural-series-led-strip-light-double-thick-4oz-copper-pcb-lighting.jpgarchitectural-series-led-strip-light-ja8-title24-compliant-lighting-t24.jpg


  • Title 24 is regulated for lamps with color temperatures 4000K and below

Specifications:

  • ✔ 4.4 Watts/ft

  • ✔ 50,000-hour lifespan (8 hours/day for 17 years)

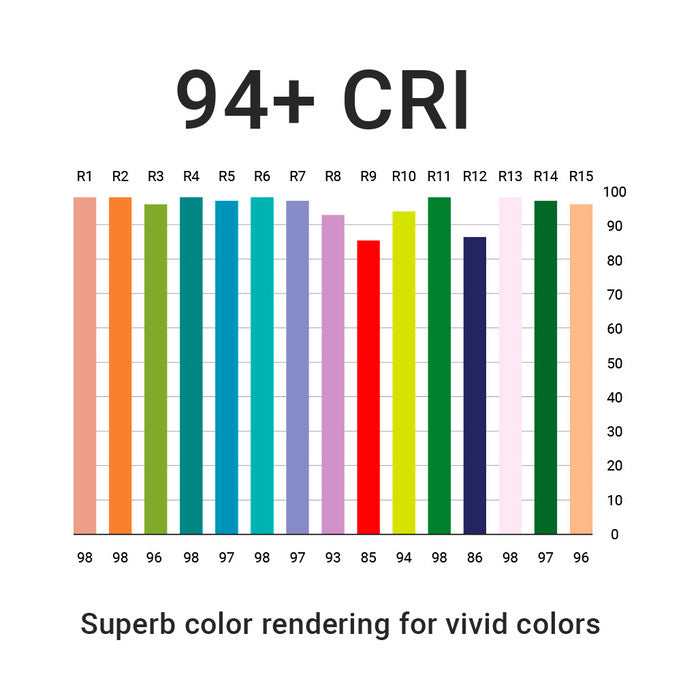

  • ✔ High CRI up to 98

  • ✔ High TLCI up to 97

  • ✔ Available in 12V and 24V input

  • ✔ Max run in series: 16 ft (12V); 42 ft (24V)

  • ✔ LED type: SMD 3014

  •  Efficacy up to 116 lm/W

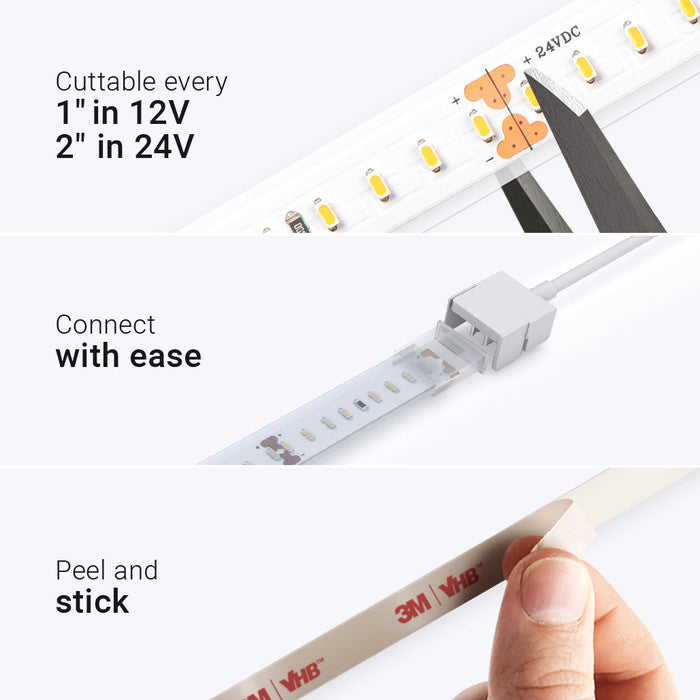

  • ✔ 12V can be cut every 1" (25 mm)

  • ✔ 24V can be cut every 2" (50 mm)

  •  Short LED pitch 1/4" (6.3 mm)

  •  49 LEDs/ft (160 LEDs/m)

  •  Single-bin selection (3-step MacAdam)

  •  3M 9495 adhesive

  •  120° beam angle

  •  Width: 1/2" (12 mm)

  •  Height: 3/16" (4 mm)

  •  Double-layer 4oz pure copper PCB

  •  Ambient temperature: -4ºF to 113ºF (-20ºC to 45ºC)

  •  UL Listed (cULus) E362522

Product SKU Color CCT Lumen / Foot
(Meter)
Luminous Efficacy
(Lumen / Watt)
CRI Gamut Score
Rg
Relative Fidelity Score
Rf
IP65-UB-AS-27K90C 2700K 466 lm/ft (1528 lm/m) 104 98 101 95
IP65-UB-AS-30K90C 3000K 478 lm/ft (1567 lm/m) 108 94 100 92
IP65-UB-AS-35K90C 3500K 499 lm/ft (1636 lm/m) 112 95 100 92
IP65-UB-AS-40K90C 4000K 493 lm/ft (1616 lm/m) 114 97 99 92
IP65-UB-AS-50K90C 5000K 502 lm/ft (1646 lm/m) 116 95 98 91

Certifications:
Certified UL listed LED strip lightcertified-ce-led-strip-lightcertified rohs LED strip lights
