Description

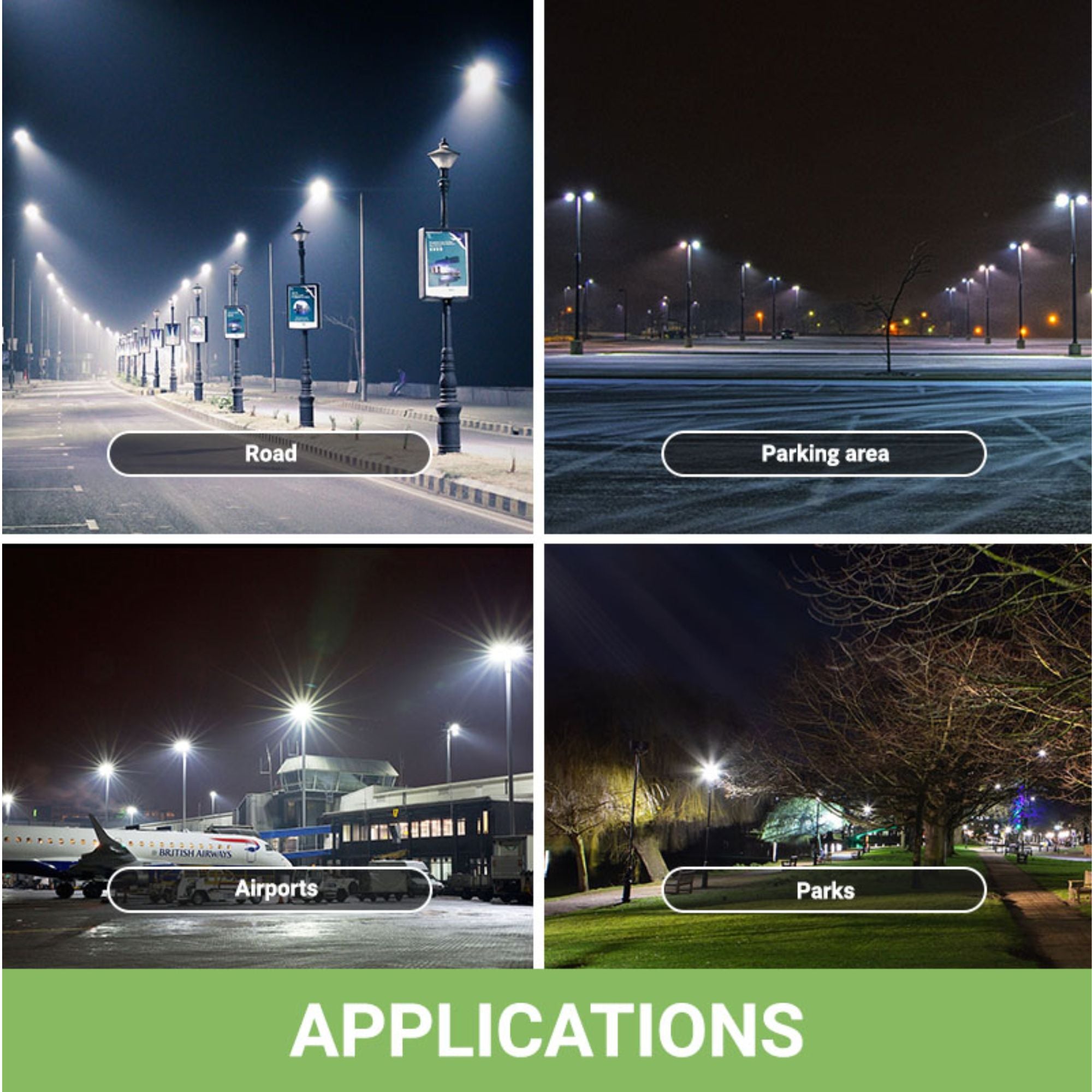

Our LED Street Light AL5 provides a powerful 200W output and a dazzling 28,700 lumens, this fixture throws brilliant illumination over wide areas, making it ideal for streets, parking lots, walkways, and more. It provides daylight-like clarity with 143 LM/W that replaces traditional 400W metal halide fixtures and saves up to 70% energy consumption.
This fixture comes with a slip fitter mount that makes the installation a breeze and provides more flexibility in adjusting the angle and direction of the light, allowing for greater customization of the lighting layout. The shorting cap is also included which allows for convenient photocell control (photocell sold on special order).

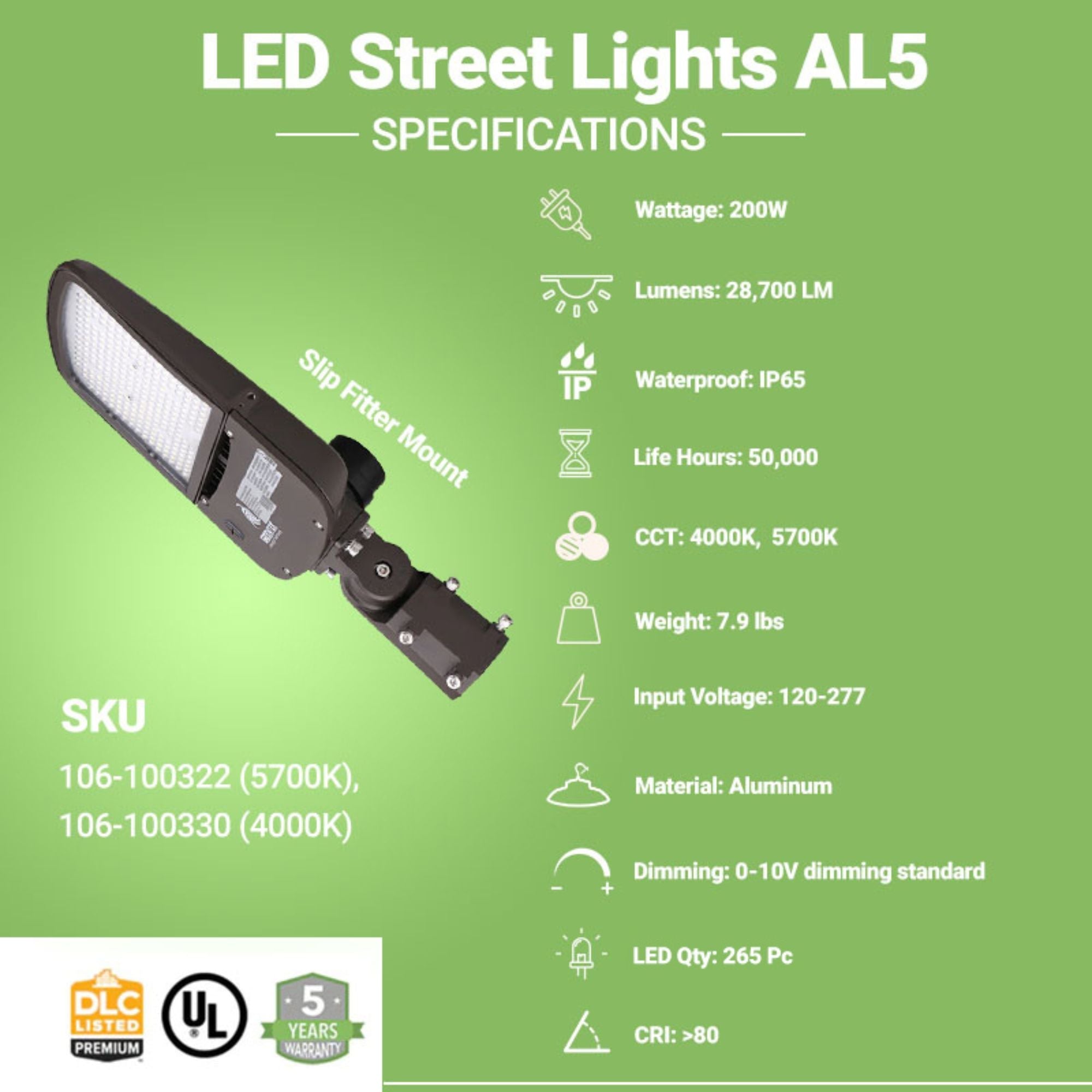

Specifications
SKU: 106-100322 (5700K), 106-100330 (4000K)
Certification: UL, DLC 5.1
Watts: 200W
Lumens: 143 lm/w
Color: 5700K, 4000K
Lumens Output: 28,700

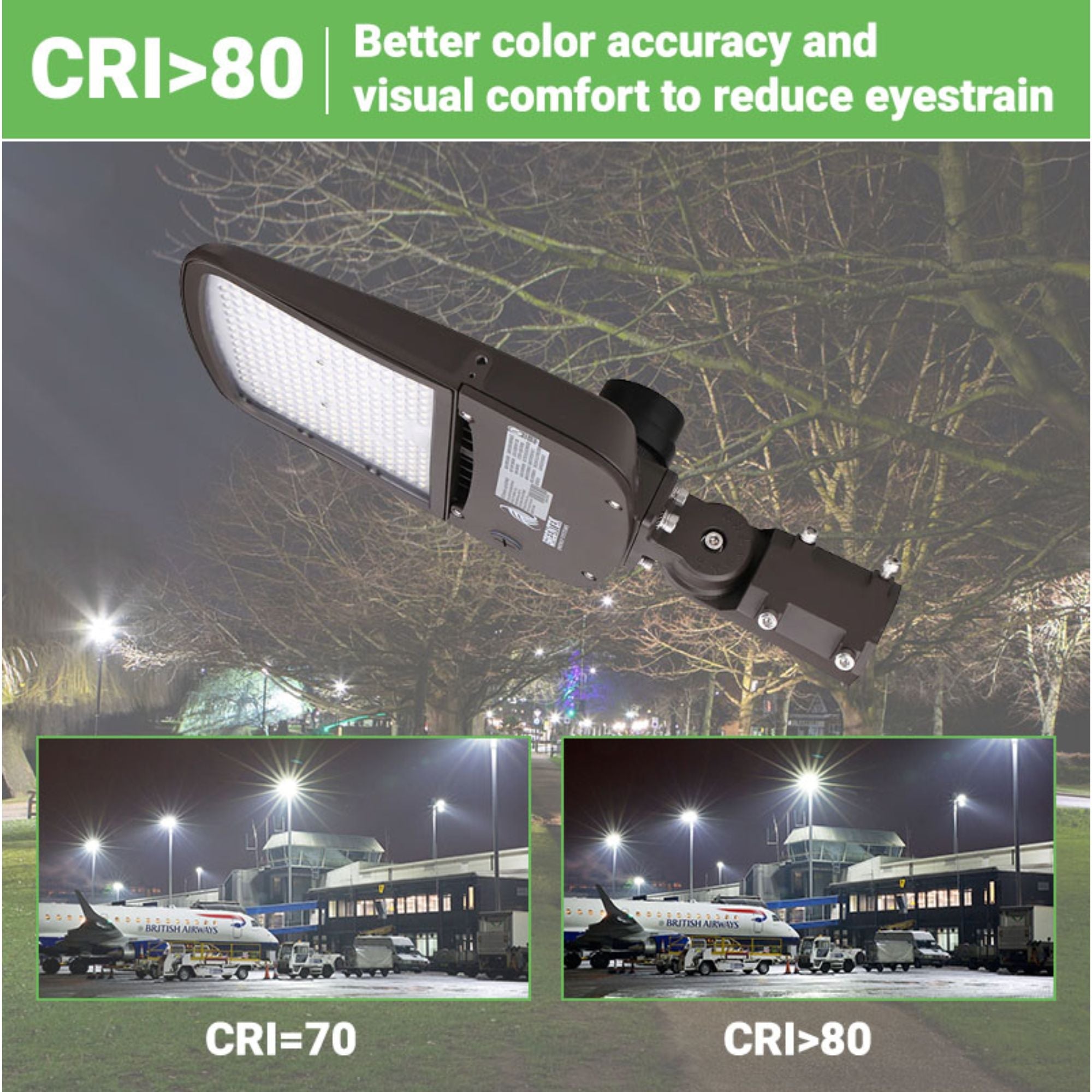

CRI: >80
Distribution: Type III
Input Voltage: 120-277VAC, 50/60Hz
Lifespan: 50,000 hours
Weight: 7.92lbs
Warranty: 5 years
Power Factor (PF): >0.9

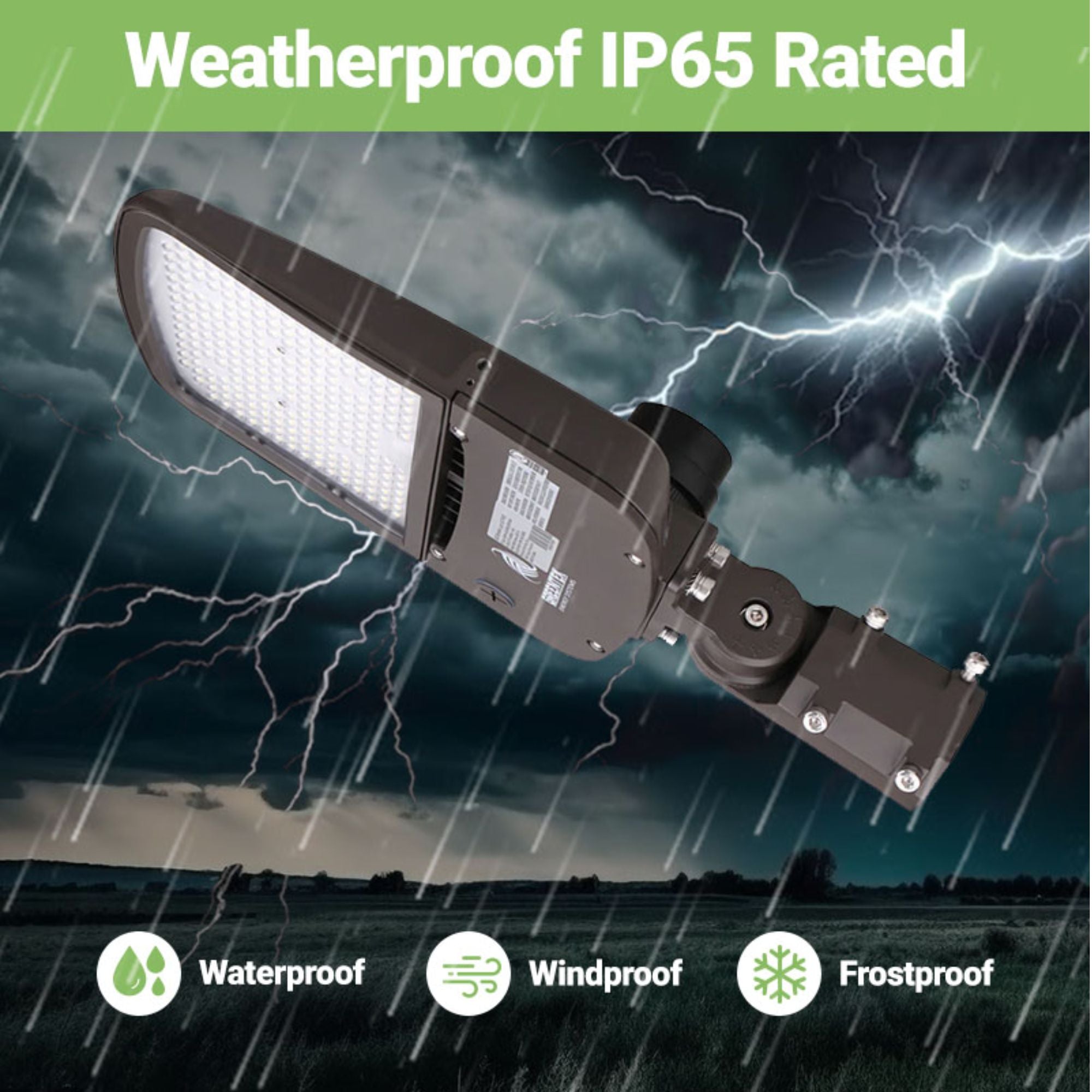

IP Grate: IP65
Housing: Aluminum Alloy
Housing Color: Bronze / Brown
Replaces: up to: 400W MH/HPS
Dimension: 20.74" x 11.83" x 3.24"
LED Type: 2835

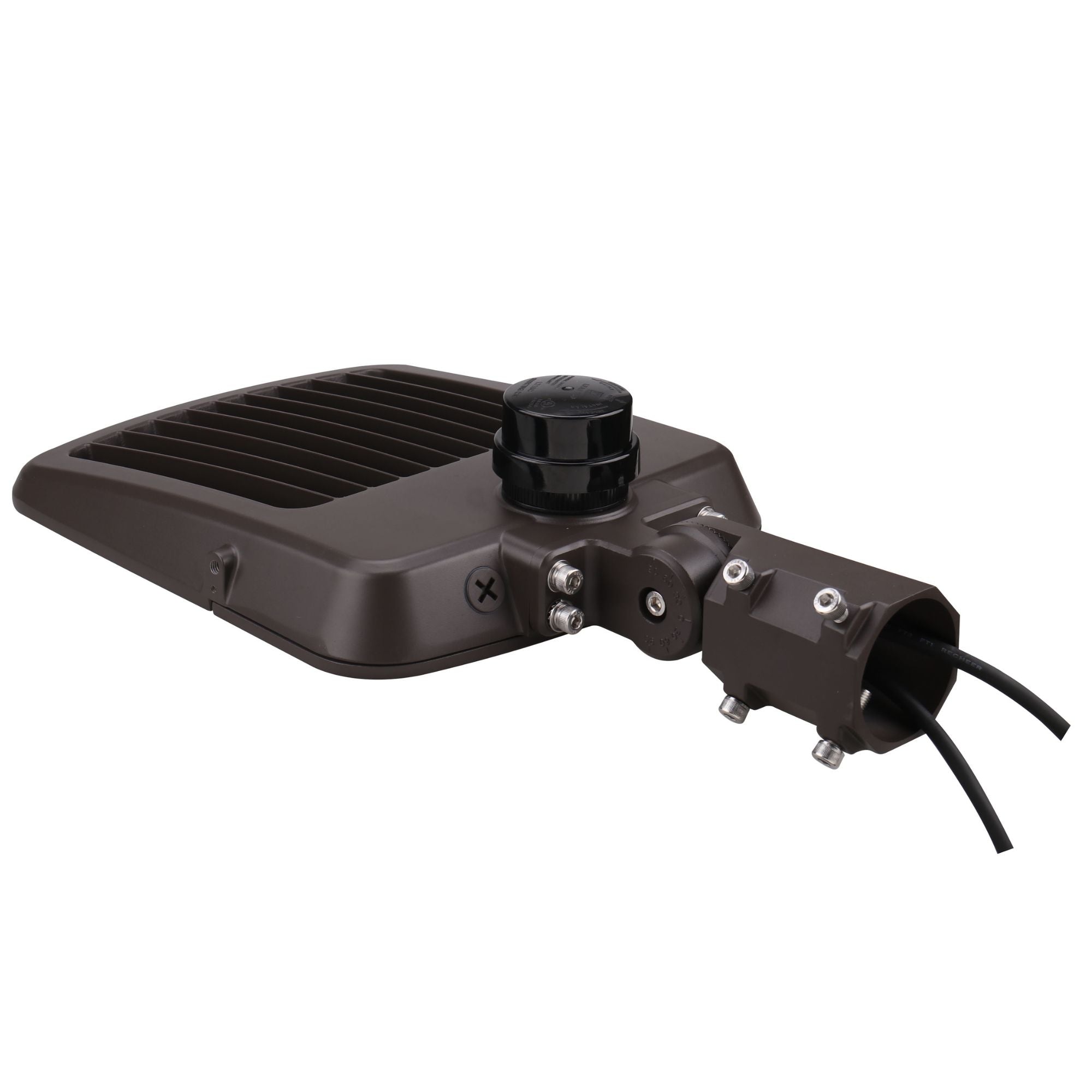

Mount type: Slip fitter (2 3/8" pole)
Shorting cap: Included
Motion Sensor: No (Can order by special order)
This product is listed under DesignLights Consortium® (DLC) which not only provides eligibility for rebates from most utility providers but also promotes high-quality and energy-efficient lighting products through vigorous testing protocols.
Specification Sheets:
Click here for specification sheet
Please turn off power before installing or changing assembly parts. The input voltage and lamps should be matched, after connecting the power line, please make sure the wiring section is insulated. Professionals should only install and disassemble the lamps.
