Description
*Each box has 25 pieces - the products are priced per box - $5.55 ea.*
Description

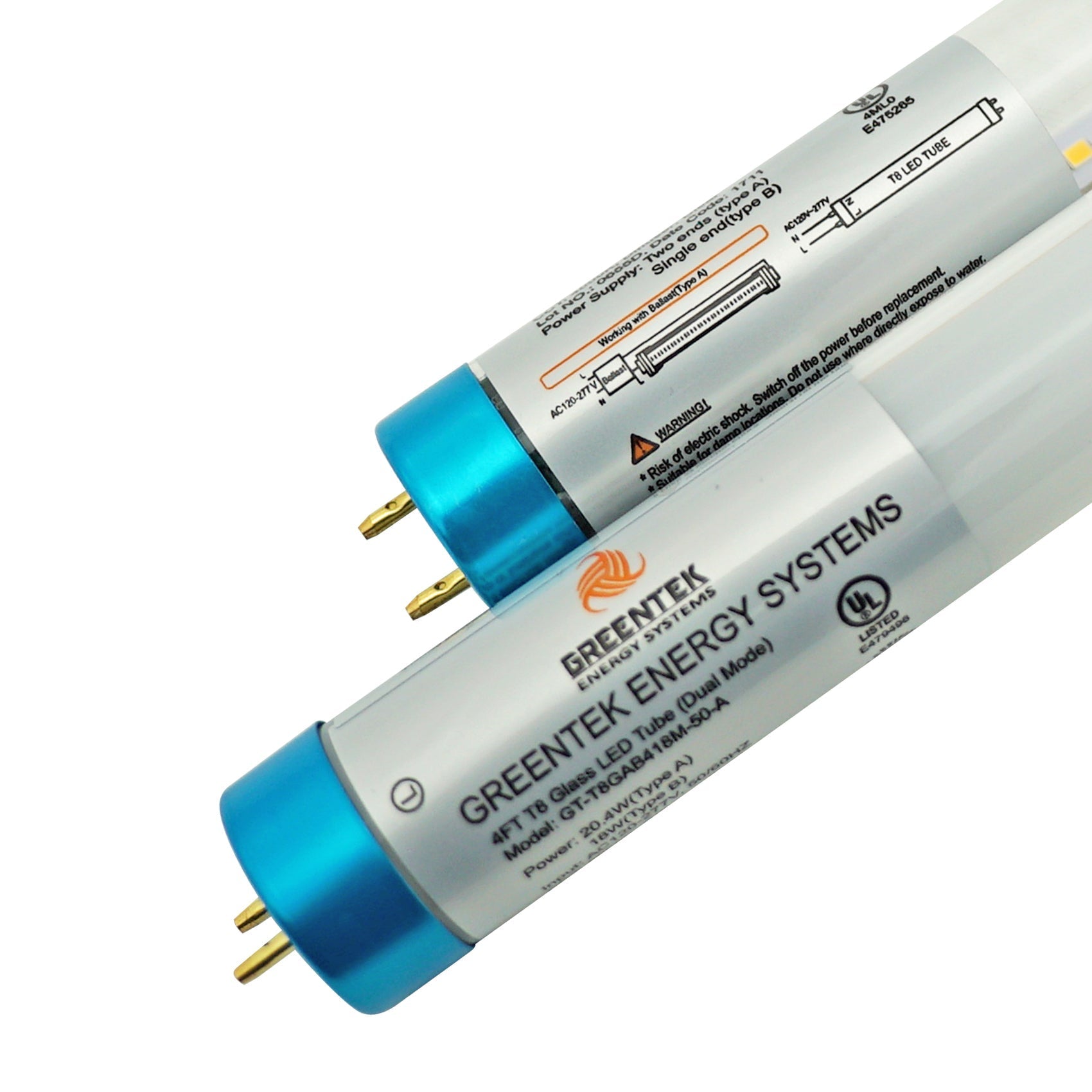

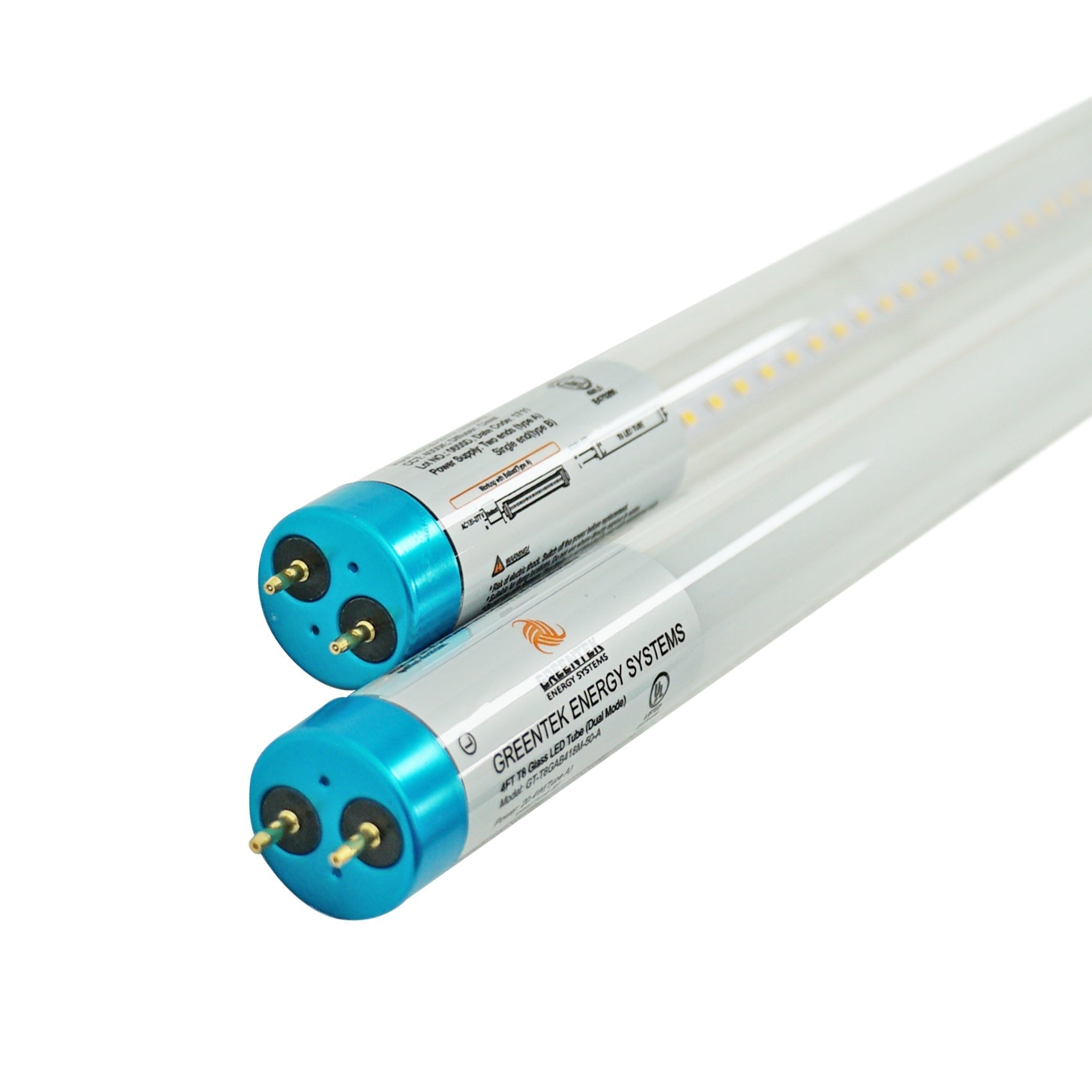

The LED T8 Glass Tube provides multiple operating modes which allow this T8 Glass Tube to work with an electronic ballast or be used without ballasts. This T8 Tube light can be directly wired into AC120-277V since it can operate without the ballast by single end and two end wiring. These Glass T8 Tubes are energy efficient and provide energy savings of 70% or more. With its high efficiency, this T8 Tube produces between 125 Lumens per Watt. Additionally, these Eco-Friendly LED lights do not emit UV or IR Radiation. Furthermore, the T8 Glass Tubes are Mercury Free and provide 50,000 hours or more of working light. Our Glass Tubes are UL Listed and come with a 3 year warranty.
Specifications
SKU: 101-100089 (Milky 4000K) , 101-100090 (Milky 5000K)
101-100091 (Transparent 4000K) , 101-100092 (Transparent 5000K)
Qualification: UL Listed
Power: 18W
Replaces up to: 32W T8 FL
Color: 4000K, 5000K
CRI: > 80
Input Voltage: depends on ballast or AC120-277V
Power Factor: ≥ 0.90
Lifespan: 50,000 hours
Lumens: 2340
Lumens Per Watt (LPW): 125 LPW
Beam Angle (°): >220°
Warranty: 3 years
Base Type: G13
Materials: Glass
IP Rating: IP20
Trim: Clear, Frosted
Safety Thermal Fuses: Included
*When wiring single ended tubes, please ensure you are using an unshunted socket
Operation and Maintenance Tips
- Store and use the lamps as same as standard fluorescent lamps
- Lamps should be kept free from contamination
- Switch off mains supply before installing/removing lamp
- Good condition of the lamp-holder contacts is important to ensure proper operation of lamp
- Use in fully enclosed fixtures may affect life performance
- Not for use in emergency lighting circuits
Product Spec Sheet
Click here to view product spec sheet and click here to view installation guide.
