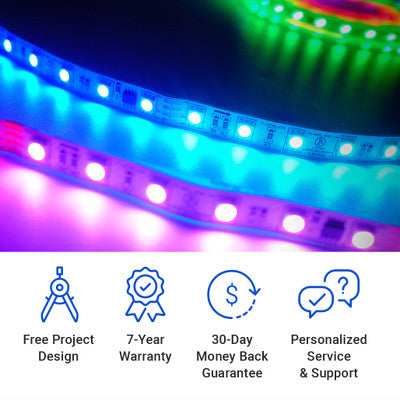

ColorBright™️ RGB Digital Pixel LED Strip Light
Introduction:
The ColorBright™️ RGB Digital Pixel LED Strip Light enables each segment of the LED strip to be controlled individually. This strip uses a top-of-the-line WS2811 IC LED chip so you will be able to control every 6 LEDs as a Pixel. The ability to control those 50 pixels individually gives way to beautiful, dynamic, breathtaking effects, which are perfect for commercial and entertainment environments.
Each of our ColorBright™️ RGB Digital Pixel LED Strip Lights comes with a special power and data connector at the beginning of the strip, specially designed to work with this strip and to properly connect it to its controller.
Top Features and Benefits:
-
✔ Millions of colors to create and choose from
-
✔ 50 pixels (6 LEDs per Pixel)
-
✔ Uses WS2811 IC
-
✔ Maximum run length up to 32 ft (10 m)
-
✔ Fully dimmable and color controllable
-
✔ Thermally resistant VHB 4930 adhesive
-
✔ 7-year warranty
-
✔ 50,000 hour lifespan (8 hours/day for 17 years)
-
✔ Thick 3oz pure copper PCB for excellent thermal management
-
✔ UL Listed (cULus) E362522

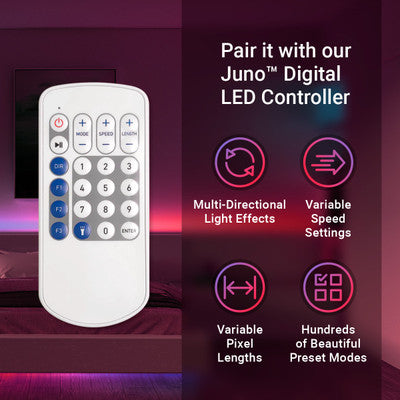

Pair it with our Juno Mesh Digital Controller to Access Hundreds of Features
When paired with our Juno™ Mesh Digital LED Controller, you will be able to create chasing, flashing, strobing, or scrolling effects in over 670 patterns, while also being able to adjust the brightness, speed, and direction of the pixels. You have complete control over your Digital Pixel LED strip with our Juno Mesh remote, however the strip is also compatible with any digital controller compatible with the WS2811 IC LEDs.
Applications and Use:
These strips are installed in a wide variety of applications including:
-
• Entertainment
-
• Hospitality
-
• Areas requiring dynamic lighting effects
-
• Shop display lighting
-
• Color controllable cove lighting
-
• Signage
-
• Bedroom lighting
-
• Backlighting
-
• Edge lighting
-
• Cabinets, shelves lighting
-
• Hotel lobbies
Why choose ColorBright™ RGB Digital Pixel LED Strip Lights?
This strip enables you to create chasing effects while adjusting the brightness, speed, and direction of the lights, and you will also have the possibility to choose from countless solid colors. This LED strip light is made out of pixels, exactly 50 per reel, all of which have a microchip that allows you to control each pixel individually. You will be able to create different effects on different parts of the LED strip, all at once or in intervals.
This strip has a 3 oz PCB thickness for better heat dissipation, custom connectors, and a 10-meter maximum power run length. The ColorBright™ RGB Digital Pixel LED Strip can be easily controlled with a Juno™ Mesh Digital LED Controller or any other SPI controller compatible with the strip’s WS2811 IC.
Specifications:
-
✔ 3.65 Watts/ft
-
✔ 7-year warranty
-
✔ Maximum run length up to 32 ft (10 m)
-
✔ 50,000-hour lifespan (8 hours/day for 17 years)
-
✔ 3/8" (10 mm) strip width
-
✔ Fully dimmable and color controllable
-
✔ 120° Beam Angle
-
✔ 24V DC Input
-
✔ Short LED pitch of 7/16" (11 mm)
-

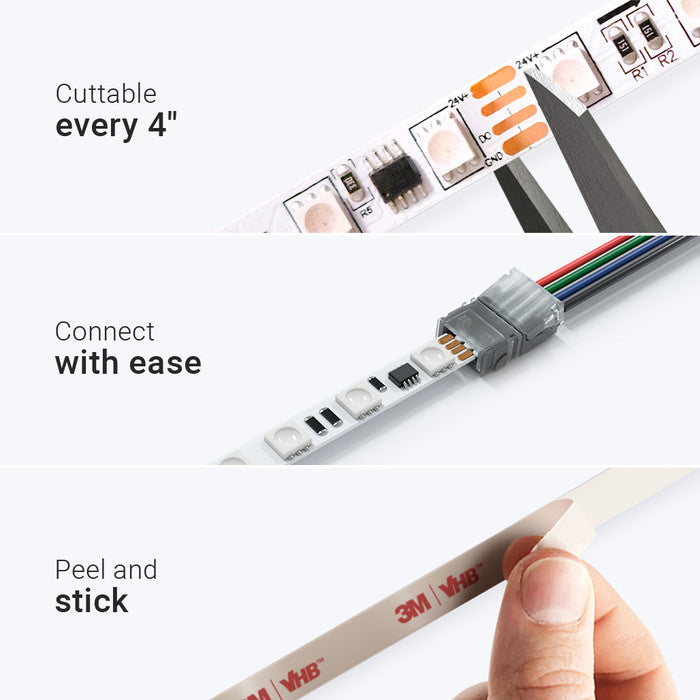

✔ Cuttable every 4" (100 mm)
-
✔ SPI controlled
-
✔ 50 pixels (6 LEDs per Pixel)
-
✔ Uses WS2811 IC
-
✔ Thermally Resistant 3M VHB 4930
-
✔ Thick double layer 3oz copper PCB
-
✔ Single BIN LED selection to ensure color consistency
-
✔ Highest quality premium packaged 5050 SMD LEDs
-
✔ Environmental Temperature -4°F - 113°F (-20°C - 45°C)
-
✔ Height: 1/16" (2 mm)
-
✔ UL Listed (cULus) E362522
| Product SKU |
LEDs / Foot |
Watts / Meter | Lumens / Foot | Lumens / Meter |
| CB-DGTL-RGB | 3.65 W/ft | 12 W/ft | 107 lm/m | 350 lm/m |
Special Instructions
- Like all SPI LED strips, this strip is unidirectional, meaning that the data can only flow in one direction. There are arrows printed on the PCB indicating the correct direction, when using connectors or attaching power, only do so at the beginning of the strip.
- When installing our RGB Digital Pixel LED Strip Lights, make all necessary connections before applying power to the LED strip. Do not cut the strips or make connections while power is applied. Not following these instructions will damage the strip’s circuitry.
