Description
FEATURES & SPECIFICATIONS
INTENDED USE

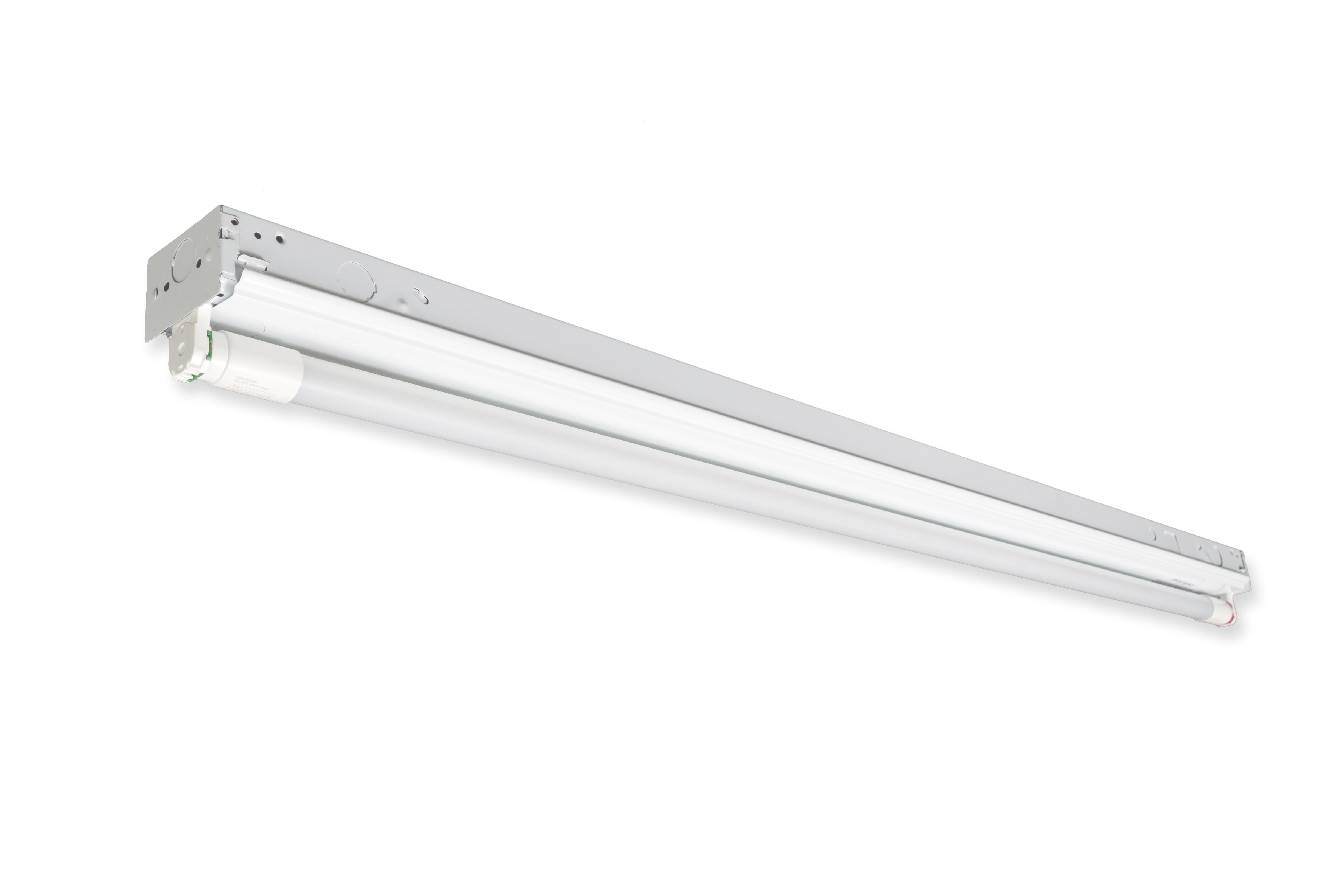

Narrow body one lamp strip for interior warehouse, retail, and utility areas requiring general illumination in a commercial quality narrow strip configuration.
Economical two lamp versions also available
SIZE W x L x H in inches (mm)
2.75W x 96L x 1.80H (70 x 45)
Fixture length = lamp(s) length
MATERIALS & FEATURES
Housing is die-formed and embossed code 22 gage steel. Finish is high reflectance baked white enamel. Wiring knockouts are provided on back, side, and end of housing. Ballast covers or reflectors attach without tools to simplify ballast access.
- Single unit length and tandem fixtures available in most lamp styles.
- W3x, economical white steel reflectors, for abusive locations
Two styles: symmetric and asymmetric
- M2, premium full specular (mirrored) reflectors, for maximum efficiency
- W1x, high reflectance white aluminum reflectors, combine economy and efficiency
LAMP
1 lamp position.
MOUNTING
Surface mount, chain hung, double stem. See end of chapter T02Strip for accessory mount kits.
LISTING
Fixture and Ballast: UL Listed. Ballast: Thermally protected, class P, HPF, Non PCB; unless specified otherwise.
TYPICAL OPTIONS AND ACCESSORIES
Emergency ballasts, whips, fuses, and wire guards. See options page at the end of the T02Strip section, or contact factory for more details.
LAMPS ARE NOT INCLUDED
Fixture body is Made in the USA.
