*$6.59 per tube in 25 pack*
Description

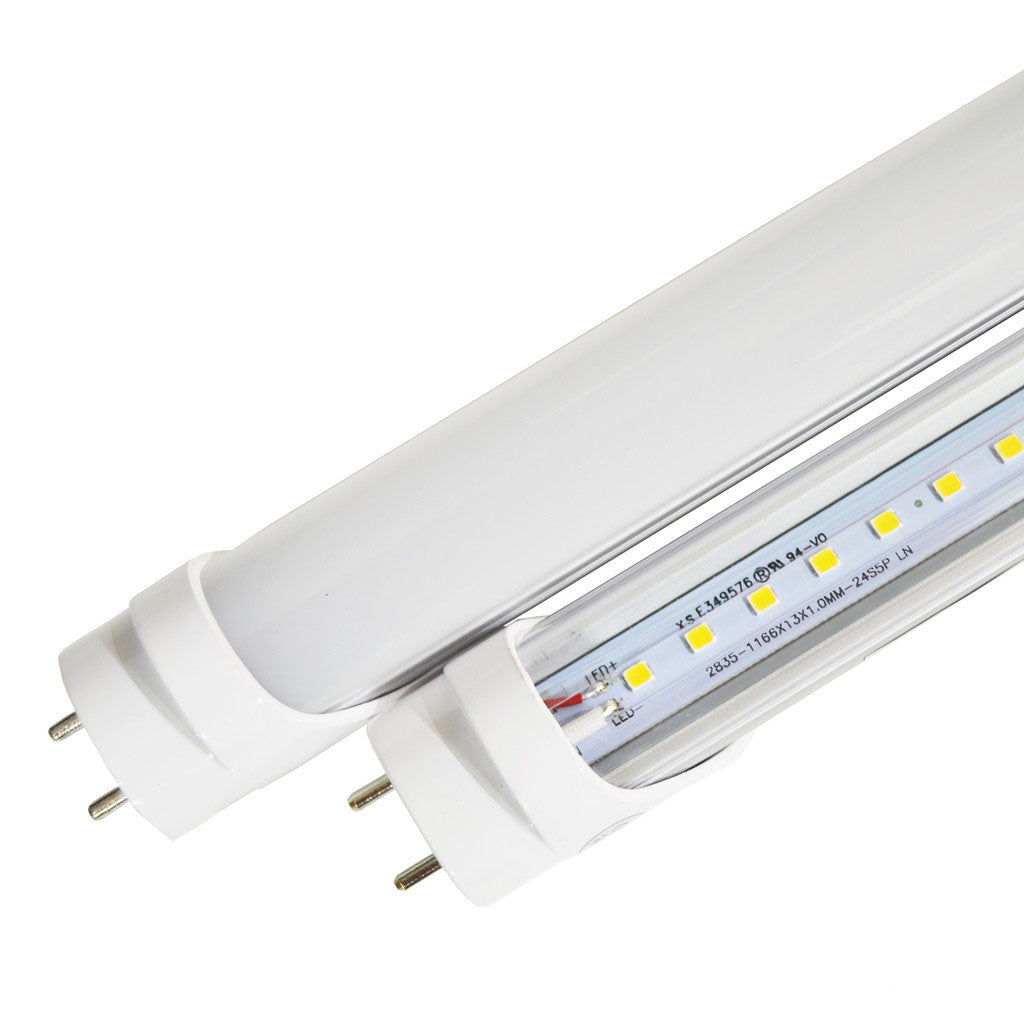

The VersaT8 is our premier LED tube and works with most T8 electronic ballasts. The advantage to this tube is its versatility. Not only can this tube work with a ballast, it can also work without a ballast, directly wired into AC100-277V. The power consumption of these LED lights range from 12-20W from 3000K to 5000K. These eco-friendly bulbs have a lifespan up to 50,000 hours or more and can save you up to 60% in power consumption. These are the highest quality products on the market today - they are ETL Listed and come with a 5 year warranty!
These tubes come with safety thermal fuses and use dot dimming.
Our led tubes bypass retrofit T8/T12 32w and 40w fluorescent tubes.
Our led tubes plug and play feature work with most T8 rapid start and instant start ballasts.
Preparing For Installation
1. Check the ballast installed in the field and make sure the ballast is in manufacturer’s ballast list which can be found below. If the ballast out of the manufacturer’s ballast list, a test may be needed before any mass installation.
2. Loose and damaged lamp holder and socket need to be adjusted or be replaced.
*For Plug N' Play installation, check the ballast compatibility list to ensure optimal and safest utilization of the tube light.
Specifications
SKU: 101-100136 (Clear 5000K), 101-100137 (Clear 4000K), 101-100138 (Clear 6500K)
Qualification: Clear - ETL
Power: 18W
Color: 5000K
CRI: > 80
Input Voltage: 100-277VAC
Frequency: 50-60 Hz
Lifespan: 50,000 hours
Lumens: 140 LM/W
Led Type: SMD 2835
Beam Angle (°): 120°
Dimmable: 0-10
Warranty: 5 years
Quantity: 25 per box
Wiring: Single End, Dual End, Ballast Compatible
Driver: Internal
Power factor: More than 0.99
Housing: Aluminum/PC
Product Spec Sheet
Click Here to view the Product Spec Sheet.
Installation Manual
RETROFIT - you will need to bypass the ballast
Click here to download the installation instructions above.
Ballast Compatibility List
Click here
*When wiring single ended tubes, please ensure you are using an unshunted socket
