UltraBright™ Slim Series LED Strip Light
Introduction:

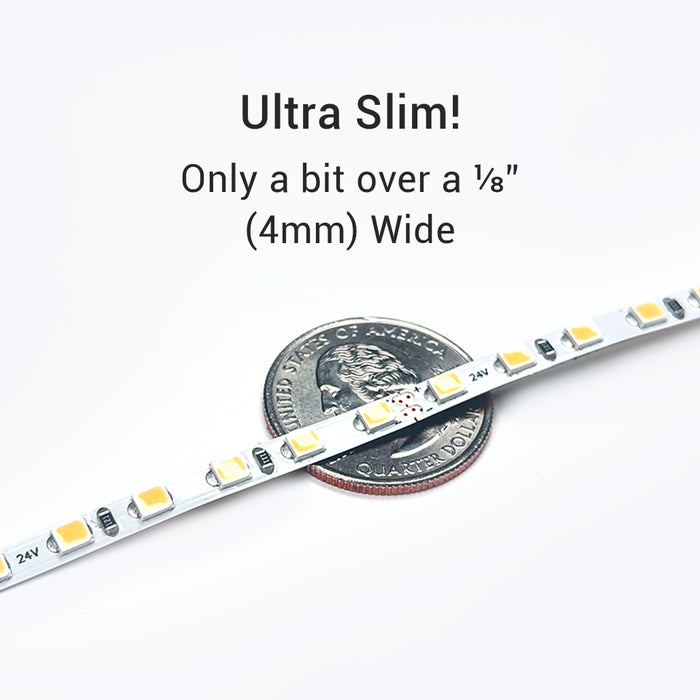

The UltraBright™ Slim Series is an ultra-thin LED strip light with just a bit over a ⅛” (4mm) width, outfitted with very bright LED chips and a strong adhesive backing. The thin design of the strip has been constructed for high brightness, optimal heat dissipation, consistency of color, and great color rendering. It is one of the most narrow LED strip lights on the market.
This strip provides elegant, discreet lighting. It is commonly used by architects and lighting designers in professional installations, as well as by OEMs and fabricators within their products.
IMPORTANT: Because of the small surface area, there are no connectors available for this strip. Also, the strip should be attached to a heat sink such as aluminum or to another metal surface to help dissipate heat and ensure the strip stays within a healthy operating temperature.
Top Features and Benefits:
Applications and Use:

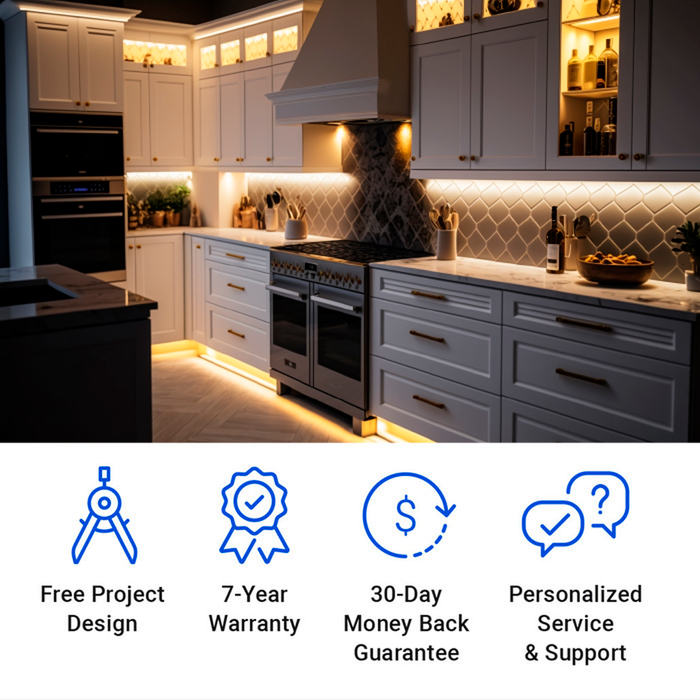

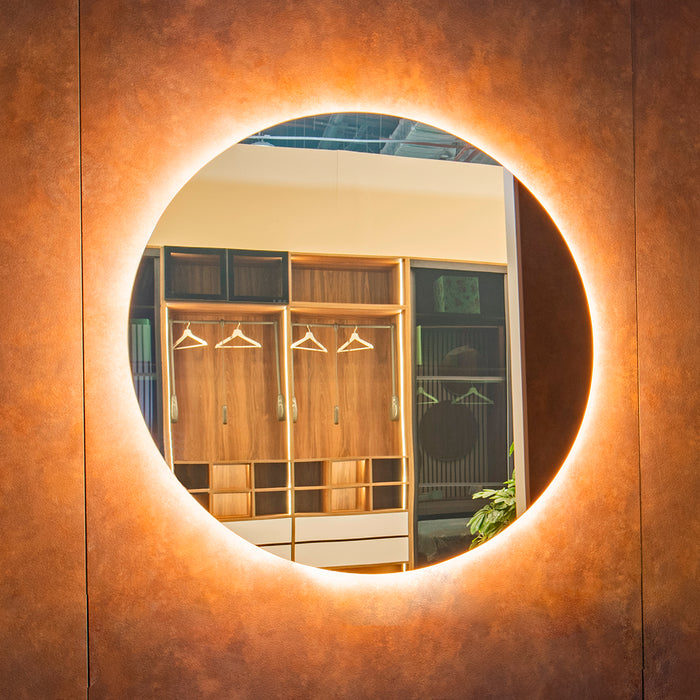

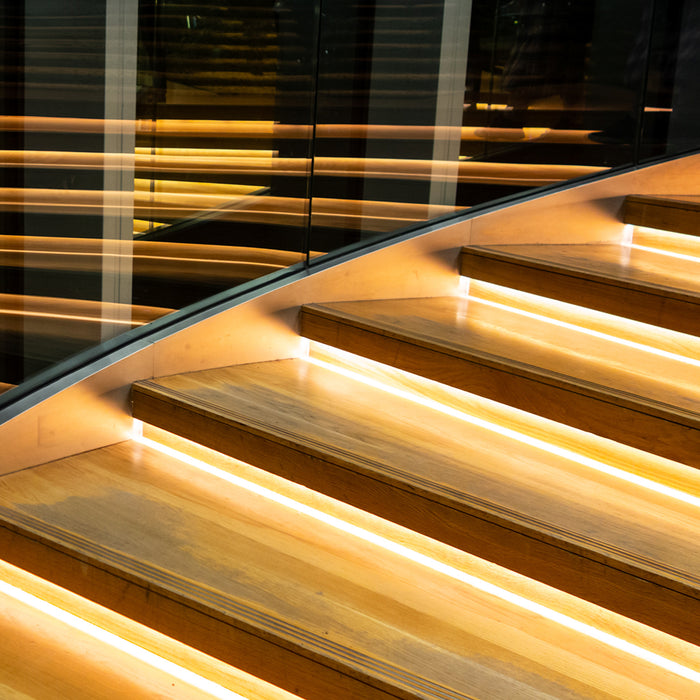

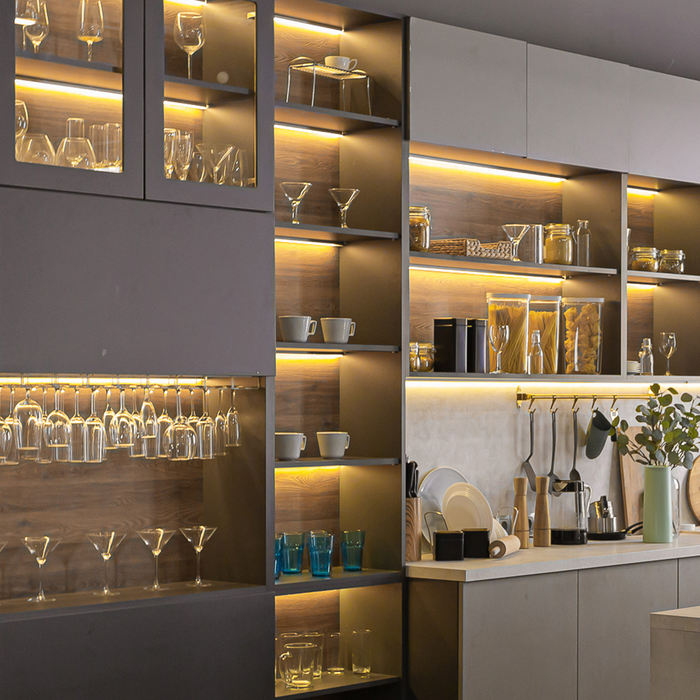

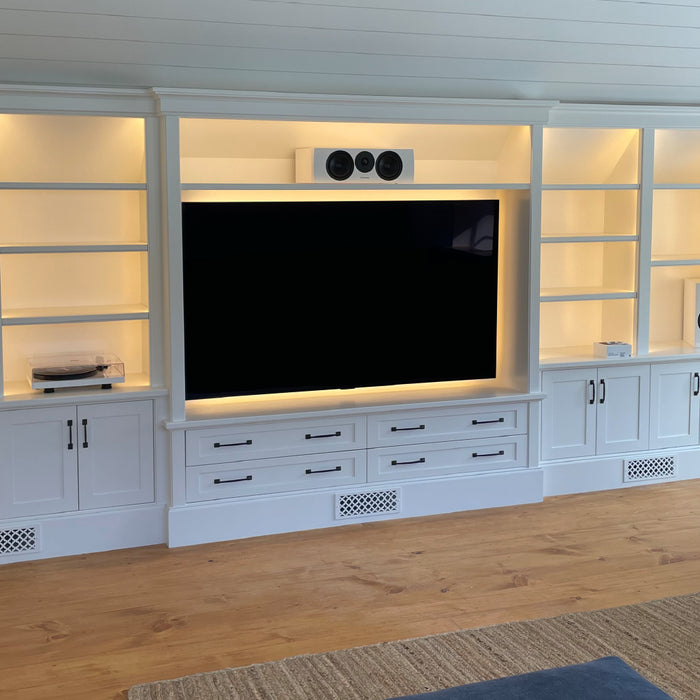

These strips are installed in a wide variety of applications including:
Brightness Level
Check out our White Output LED Strips Page to compare the output levels of our Static White Strips.
At 391 lumens per foot, this mid-output strip is perfect for bright accent lighting.
Available Colors (CCTs):
Why choose Slim™ Series?
This strip is the thinnest LED strip light we offer with a bit over a ⅛” (4mm) in width, but powerful enough to create a beautiful line of light in small spaces, making it a great fit for different applications inside and under cabinets, inside any product, or any other project that requires a slim LED strip light. Our UltraBright™ Slim Series has a 50,000 hour lifespan and a 7-year warranty.
Specifications:
-
✔ 4.6 Watts/ft
-
✔ 50,000-hour lifespan (8 hours/day for 17 years)
-
✔ 7-year warranty
-
✔ High CRI up to 95
-
✔ Width: A bit over 1/8" (4 mm)
-
✔ Height: 1/16" (1.5 mm)
-

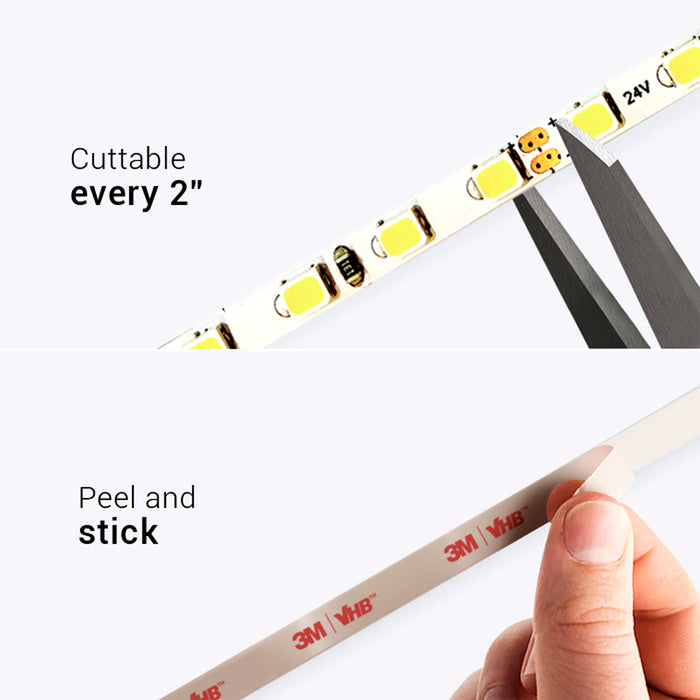

✔ Can be cut every 2"
-
✔ Max length in series 16' 5"
-
✔ Fully Dimmable
-
✔ 120° beam angle
-
✔ 24V DC input voltage
-
✔ 36 LEDs/Foot (120/Meter)
-
✔ Short LED pitch of 1/4" (7 mm)
-
✔ 3M 300 LSE adhesive backing
-
✔ Single BIN LED selection to ensure color consistency
-
✔ 4 oz pure copper PCB
-
✔ Highest quality premium packaged 2835 SMD LEDs
-
✔ Environmental Temperature -4°F - 113°F (-20°C - 45°C)
-
✔ IP20-rated for indoor, dry locations
-
✔ UL Listed (cULus) E362522
Product SKU |
Color CCT |
Lumen / Foot (Meter)
|
Luminous Efficacy (Lumens / Watt)
|
CRI |
TLCI |
Gamut Score Rg
|
Relative Fidelity Score Rf
|
UB-SS-30K90C |
3000K |
360 lm/ft (1,180 lm/m) |
81 |
94 |
100 |
100 |
92 |
UB-SS-50K90C |
5000K |
391 lm/ft (1,255 lm/m) |
90 |
95 |
99 |
99 |
91 |
Certifications:
