Description
Our LED Wall Pack fixtures are great replacements for outdoor, forward throw Metal Halide or Sodium Potassium bulbs. Our High Powered LED Rotatable Wall Pack Lights are great additions for poorly lite outdoor areas. They will replace anywhere from 150W to 275W HPS/MH and provide sufficient lumens in majority of applications. Our LED Wall Packs are easy to install and operate and provide convenient features such as "Instant Start." In addition to the above, our Rotatable Wall Packs have long life spans and are accompanied with a 5 year warranty.

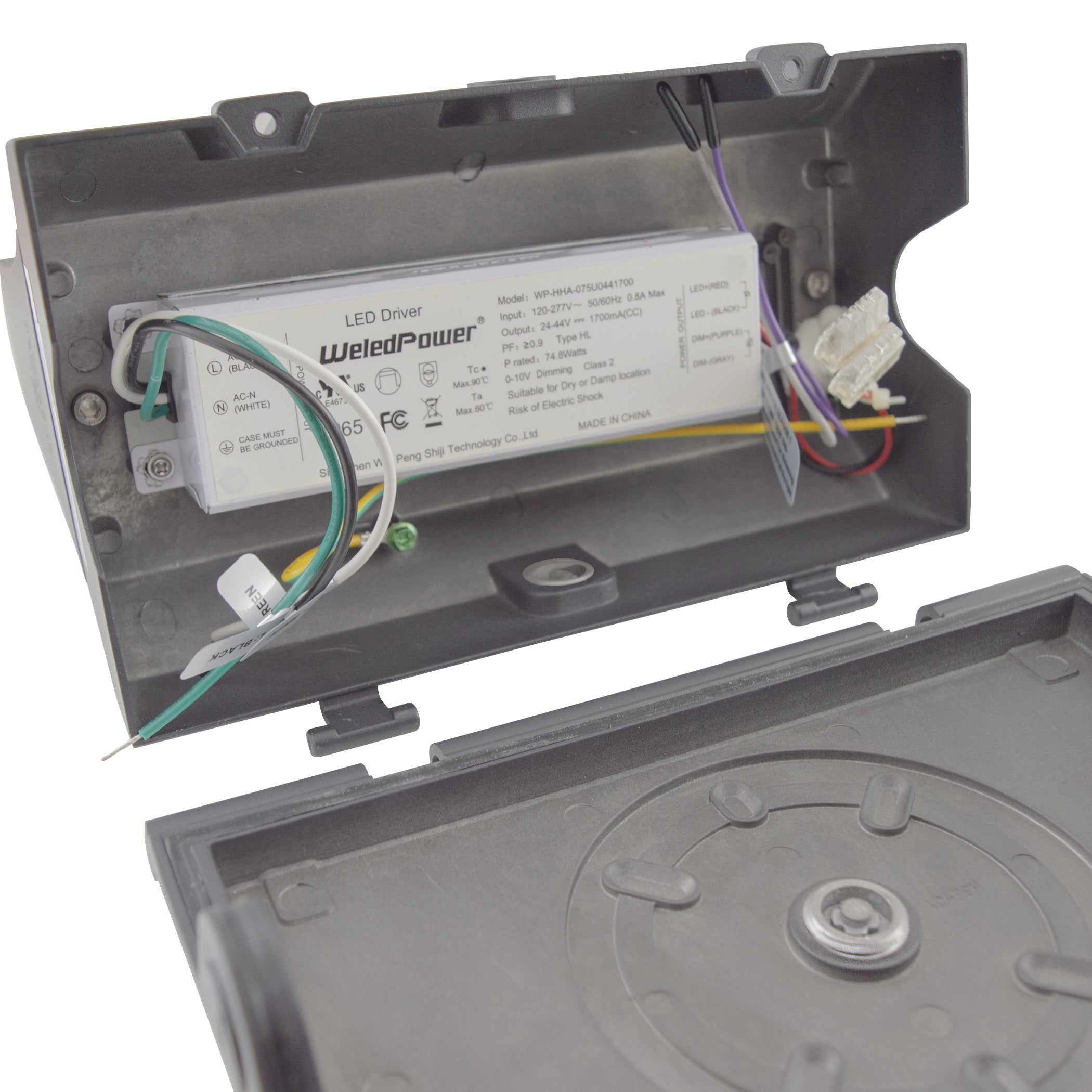

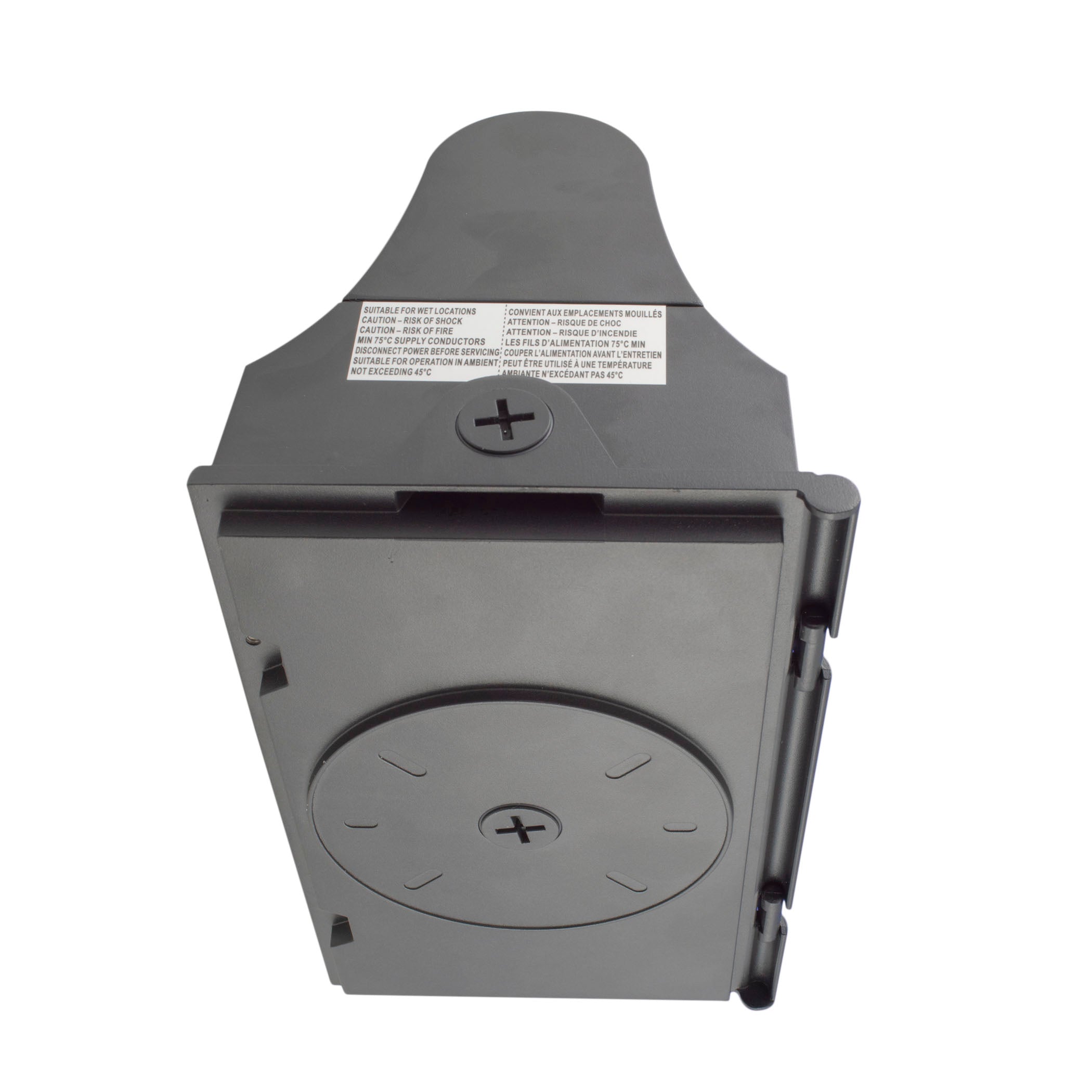

This version also has a built-in junction box with a pre-installed weather strip to keep moisture and insects from getting inside the fixture from the mounting points. It is also detachable to allow for more precision when mounting to the wall surface.
This product is listed under DesignLights Consortium® (DLC) which does not only provide eligibility for rebates from most utility providers, but also promotes high-quality and energy-efficient lighting products through vigorous testing protocols.
Specifications
SKU: 107-100074 (4000K) , 107-100072 (5000K)
Qualification: DLC, UL
Watts: 40W
Replaces up to: 125W -175W HID
Lumens: 5000 lm
Dimensions (LxHxW): 9.13in x 5.2in x 5.67in
Color: 4000K / 5000K
Operating Temperature: -4°F to 113°F
Input Voltage: 100-277V/50-60Hz
Housing: Aluminum
Housing Color: Black
IP Rating: IP65 Rated
Viewing Angle (°): 60°
LED: Philips
Lifespan: 50,000 hours
Warranty: 5 years
Product Spec Sheet
Click Here to view the Product Spec Sheet.
Installation Manual
Click Here for the wall pack installation manual.
Notice For User:
- Please turn off power before install or change assembly parts.
- The input voltage and lamps should be matched, after connecting the power line,
- Please make sure the wiring section is insulated.
- No-professionals, must not install and disassemble the lamps.
