UltraBright™ Architectural Series LED Strip Light
Introduction:
Our UltraBright™ Architectural Series is built to last and to make lasting impressions. Born to meet the high standard of innovative architectural design and complex lighting projects, the Architectural Series features an incredible output up to 502 lumen /ft, excellent color rendering up to 98, low energy usage at 4.4 W/ft, and longer run lengths up to 42 ft. Pair this strip with a dimmer to take full advantage of its versatile applications, from bright task lighting to lower, comfortable accents. Developed with our network of architects and designed to meet their specific needs, we’ve created a series of exceptional LED lights by balancing functionality, aesthetics, and versatility.
Top Features and Benefits:
-
✔ High CRI up to 98 and TLCI up to 97
-
✔ High efficiency of 4.4 Watts/ft
-
✔ High output up to 502 lm/ft (1,646 lm/m)
-
✔ Available in 12V and 24V input
-
✔ Fully dimmable
-
✔ Can be used to comply with Title 24 JA8
-
✔ 50,000 hour lifespan (8 hours/day for 17 years)
-
✔ 15-year warranty
-
✔ UL Listed (cULus) E362522
Applications and Use:
These strips are installed in a wide variety of applications including:
Brightness Level
Check out our White Output LED Strips Page to compare the output levels of our Static White Strips.
At 502 lumens per foot, this high-output strip is perfect for task lighting.
Available Colors (CCTs):
Why choose Architectural™ Series?
The UltraBright™ Architectural Series is the industry choice to meet the high demands of architectural design and innovative lighting projects. The Architectural Series boasts brilliant brightness, excellent color rendering, and discreet elegance for any size project. Experience every color exactly how they should appear for years to come, while keeping your energy usage low with these durable, efficient lights. Our unparalleled understanding of the LED market lets us solve common commercial issues and push the boundaries of rapidly-growing technology.
*Title 24 is regulated for lamps with color temperatures 4000K and below
Specifications:
-
✔ 4.4 Watts/ft
-
✔ 50,000-hour lifespan (8 hours/day for 17 years)
-

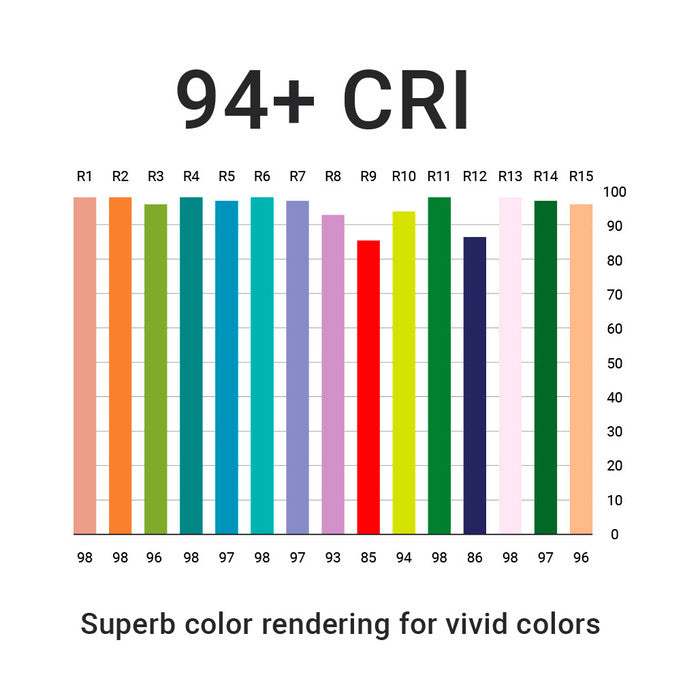

✔ High CRI up to 98
-
✔ High TLCI up to 97
-
✔ Available in 12V and 24V input
-
✔ Max run in series: 16 ft (12V); 42 ft (24V)
-
✔ LED type: SMD 3014
-
✔ Efficacy up to 116 lm/W
-

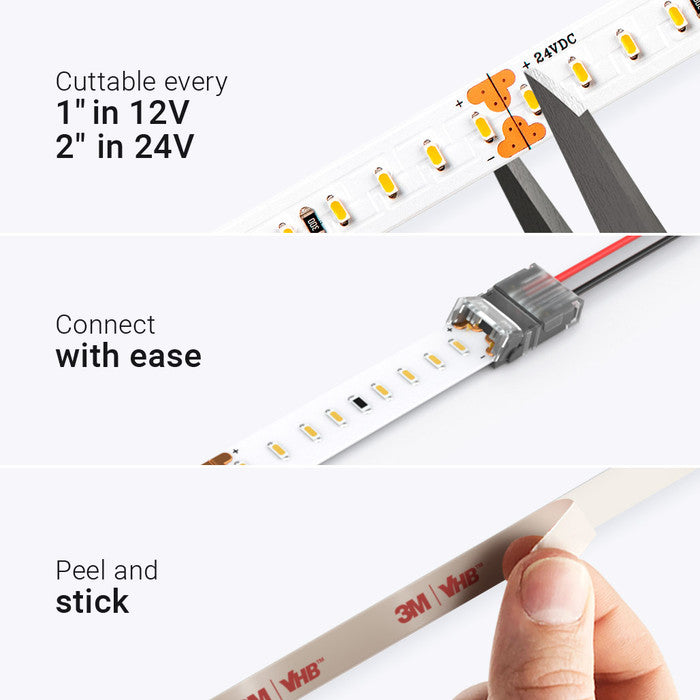

✔ 12V can be cut every 1" (25 mm)
-
✔ 24V can be cut every 2" (50 mm)
-
✔ Short LED pitch 1/4" (6.3 mm)
-
✔ 49 LEDs/ft (160 LEDs/m)
-
✔ Single-bin selection (3-step MacAdam)
-
✔ 3M VHB 4930 adhesive
-
✔ 120° beam angle
-
✔ Width: 3/8" (10 mm)
-
✔ Height: 1/16" (2 mm)
-
✔ Double-layer 4oz pure copper PCB
-
✔ Operating temperature: -4ºF to 113ºF (-20ºC to 45ºC)
-
✔ UL Listed (cULus) E362522
Product SKU |
Color CCT |
Lumen / Foot (Meter)
|
Luminous Efficacy (Lumen / Watt)
|
CRI |
Gamut Score Rg
|
Relative Fidelity Score Rf
|
UB-AS-27K90C |
2700K |
466 lm/ft (1528 lm/m) |
104 |
98 |
101 |
95 |
UB-AS-30K90C |
3000K |
478 lm/ft (1567 lm/m) |
108 |
94 |
100 |
92 |
UB-AS-35K90C |
3500K |
499 lm/ft (1636 lm/m) |
112 |
95 |
100 |
92 |
UB-AS-40K90C |
4000K |
493 lm/ft (1616 lm/m) |
114 |
97 |
99 |
92 |
UB-AS-50K90C |
5000K |
502 lm/ft (1646 lm/m) |
116 |
95 |
98 |
91 |
Certifications:
