Description
This High Voltage (277-480VAC) LED Wall Pack Light delivers 135LM/W bright and energy-efficient lighting that replaces traditional HPS/HID bulbs. Our wall pack lights are UL, and DLC 5.1 qualified, ensuring top-notch quality.
The fixture has a built-in photocell sensor that automatically adjusts its illumination based on ambient light levels. Its wattage adjustable feature allows you to switch the wattages (120W/100W/80W) according to your requirements. The Stripe Glass diffuser enhances light distribution, minimizing glare and providing a pleasant lighting experience. The heavy-duty die-cast aluminum body ensures IP 65 rating that can work in all outdoor environments. Our SWP5 Wall Pack Lighting lasts over 50,000 hours and has a 5-year warranty.
*This light fixture only comes with the photocell accessory. Any other accessories displayed in the video (motion sensors, emergency ballasts, shields, or cages) could be special ordered by calling our office*

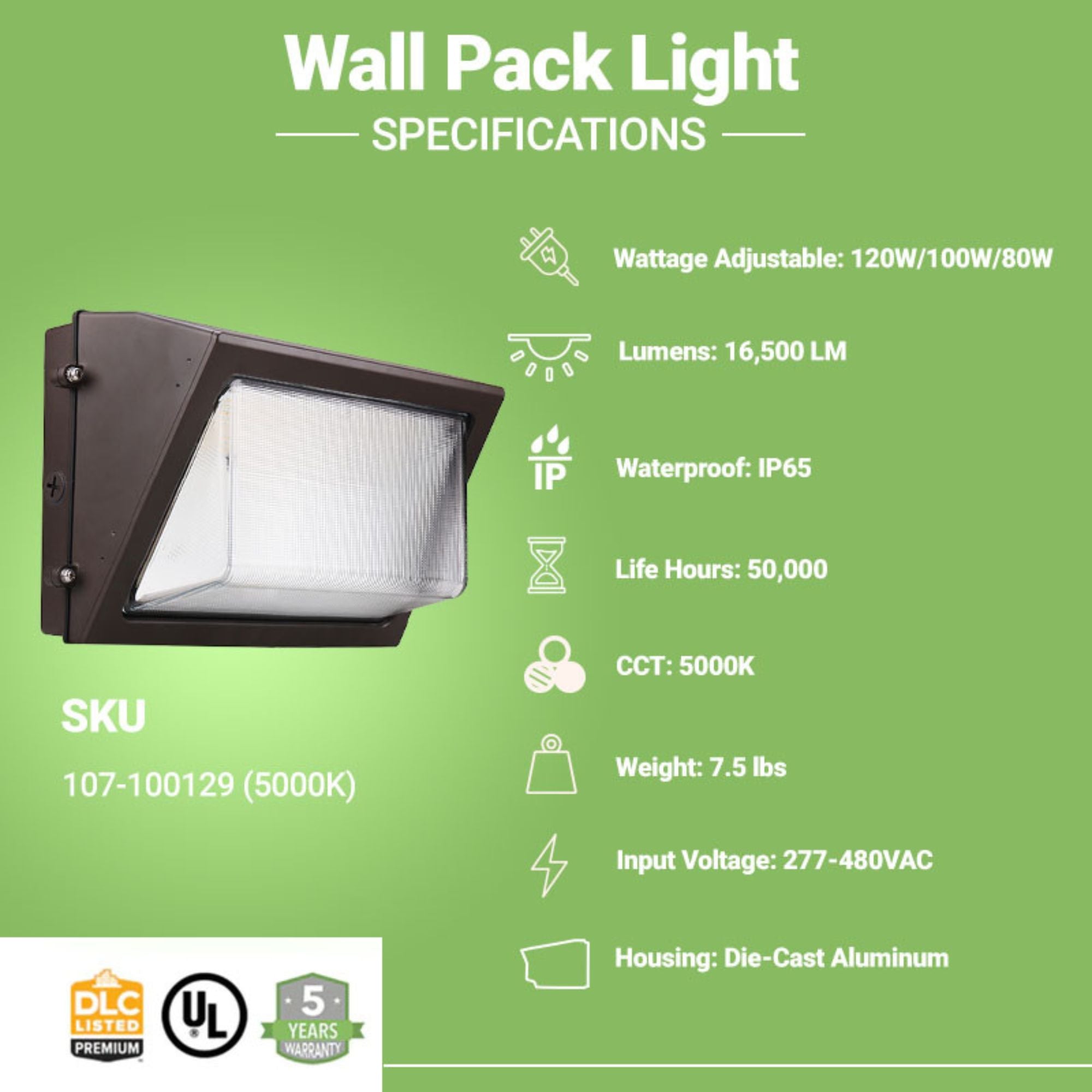

Specifications
SKU: 107-100129 (5000K)
Lumens: 16,500 LM (120W)
Qualification: 14.2" x 8.6" x 6.5"
Material: Die-cast aluminum
Adjustable Watts: 120W/100W/80W
Colors: 5000K
Input Voltage: 277-480VAC
Weight: 7.5 lbs
Dimming: 0-10V
Sensor Type: Photocell Sensor
CRI: >80
LED Count: 286 PCS
Fixture Color: Bronze
Weatherproof: IP65 Rating
Warranty: 5 Years
This product is listed under DesignLights Consortium® (DLC) which not only provide eligibility for rebates from most utility providers but also promotes high-quality and energy-efficient lighting products through vigorous testing protocols.
Product Spec Sheet
Click Here to view the Product Spec Sheet.
Click Here for Installation Instructions.
Notice For User:
- Please turn off power before installation, troubleshooting, or changing parts.
- The input voltage and should be matched with the lamps, please make sure the wiring section is insulated.
- Professionals are recommended for the installation and disassembly of lamps.
